class anychart.graphics.vector.PatternFill Improve this Doc
Extends: anychart.graphics.vector.Layer
Pattern fill class.
Do not invoke constructor directly. Use anychart.graphics#patternFill.
Try it:
Methods Overview
| Events | |
| listen() | Adds an event listener. |
| listenOnce() | Adds an event listener that is removed automatically after the listener fired once. |
| removeAllListeners() | Removes all listeners from this listenable. |
| unlisten() | Removes an event listener which was added with listen() or listenOnce(). |
| Interactive | |
| drag() | Dragging setting. |
| Interactivity | |
| visible() | Visibility flag |
| Size and Position | |
| appendTransformationMatrix() | Combines the transformation with the given transformation matrix. |
| getAbsoluteBounds() | Gets element bounds in absolute coordinates (root element coordinate system). |
| getAbsoluteHeight() | Returns height within root bounds. |
| getAbsoluteWidth() | Returns width within root bounds. |
| getAbsoluteX() | Returns an absolute X (root element coordinate system). |
| getAbsoluteY() | Returns an absolute Y (root element coordinate system). |
| getBounds() | Returns the bounds. |
| getHeight() | Returns the height. |
| getRotationAngle() | Returns the rotation angle in degrees. |
| getTransformationMatrix() | Returns the transformation matrix. |
| getWidth() | Returns the width. |
| getX() | Returns X in the coordinate system of the parent. |
| getY() | Returns Y in the coordinate system of the parent. |
| rotate() | Rotates a shape around the given rotation point. |
| rotateByAnchor() | Rotates a shape around the given anchor. |
| scale() | Scales a shape. Scaling center is set in the coordinate system of the parent. |
| scaleByAnchor() | Scales a shape by anchor. Scaling center is set as an anchor. |
| setPosition() | Sets top left corner of a shape (transformation taken into account) in the coordinate system of the parent. |
| setRotation() | Rotates a shape around the given point. |
| setRotationByAnchor() | Rotates a shape around the given anchor. |
| setTransformationMatrix() | Sets the transformation matrix. |
| translate() | Moves a shape taking an account the transformation. |
| zIndex() | Z-index setting. |
| Miscellaneous | |
| addChild() | Add element to a layer, to the top (maximal index). |
| addChildAt() | Adds an element to a layer by index. |
| attr() | Attribute setting |
| circle() | Invokes anychart.graphics.vector.Circle class constructor. |
| clip() | Clipping setting. |
| cross() | Draws a cross set by its circumscribed circle center and radius. |
| cursor() | Cursor type. |
| desc() | Description setting |
| diagonalCross() | Draws a diagonal cross set by its circumscribed circle center and radius. |
| diamond() | Draws a diamond set by its circumscribed circle center and radius. |
| disablePointerEvents() | Pointer events setting. |
| disableStrokeScaling() | Vector effect property |
| dispose() | Disposes element completely. |
| domElement() | Returns DOM element if element is rendered. |
| donut() | Draws sector as donut chart element. |
| ellipse() | Invokes anychart.graphics.vector.Ellipse class constructor. |
| forEachChild() | Applies function to all elements in a layer. |
| getChildAt() | Returns element by index. |
| getStage() | Stage object (to which the given element is bound). |
| hLine() | Draws a thick horizontal line set by its circumscribed circle center and radius. |
| hasChild() | Checks if there is such element in children set. |
| hasParent() | Whether parent element is set. |
| html() | Invokes anychart.graphics.vector.Text class constructor and applies anychart.graphics.vector.Text#htmlText method |
| id() | Element identifier |
| image() | Invokes anychart.graphics.vector.Image class constructor. |
| indexOfChild() | Looks for an element in a layer and returns index or -1, if not found. |
| layer() | Invokes anychart.graphics.vector.Layer class constructor. |
| numChildren() | Returns the number of children. |
| parent() | Parent layer. |
| path() | Invokes anychart.graphics.vector.Path class constructor. |
| pie() | Draws sector as pie chart element. |
| rect() | Invokes anychart.graphics.vector.Rect class constructor. |
| remove() | Current element removes itself from the parent layer. |
| removeChild() | Removes element from a layer. |
| removeChildAt() | Removes element from a layer by index. |
| removeChildren() | Removes all children from a layer. |
| roundedInnerRect() | Draws rectangle with corners rounded inside. |
| roundedRect() | Draws rectangle with rounded corners. |
| star() | Draws multi-pointed star. |
| star10() | Draws ten-pointed star. |
| star4() | Draws four-pointed star. |
| star5() | Draws five-pointed star. |
| star6() | Draws six-pointed star. |
| star7() | Draws seven-pointed star. |
| swapChildren() | Swaps children. |
| swapChildrenAt() | Swaps children by indexes. |
| text() | Invokes anychart.graphics.vector.Text class constructor. |
| title() | Title setting |
| triangleDown() | Draws a triangle heading downwards set by its circumscribed circle center and radius. |
| triangleLeft() | Draws a triangle heading leftwards set by its circumscribed circle center and radius. |
| triangleRight() | Draws a triangle heading rightwards set by its circumscribed circle center and radius. |
| triangleUp() | Draws a triangle heading upwards set by its circumscribed circle center and radius. |
| truncatedRect() | Draws rectangle with cut corners. |
| vLine() | Draws a thick vertical line set by its circumscribed circle center and radius. |
Methods Description
addChild
Add element to a layer, to the top (maximal index).
All DOM changes will happen instantly, except anychart.graphics.vector.Stage#suspend.
Simplified version of anychart.graphics.vector.Layer#addChildAt where element is added to the end.
All DOM changes will happen instantly, except anychart.graphics.vector.Stage#suspend.
Simplified version of anychart.graphics.vector.Layer#addChildAt where element is added to the end.
Params:
| Name | Type | Description |
|---|---|---|
| element | anychart.graphics.vector.Element | Element to add. |
Returns:
anychart.graphics.vector.PatternFill - Self instance for method chaining.Try it:
addChildAt
Adds an element to a layer by index.
Note: the greater index is - the 'higher' element is in a layer top element overlaps bottom elements.
All DOM changes will happen instantly, except anychart.graphics.vector.Stage#suspend.
Left image shows sequential calls of anychart.graphics.vector.Layer#addChild
Right image does the same, but star is added to 0 index.
Note: the greater index is - the 'higher' element is in a layer top element overlaps bottom elements.
All DOM changes will happen instantly, except anychart.graphics.vector.Stage#suspend.
Left image shows sequential calls of anychart.graphics.vector.Layer#addChild
Right image does the same, but star is added to 0 index.
.addChildAt(star5, 0); (see code of this image in samples).Params:
| Name | Type | Description |
|---|---|---|
| element | anychart.graphics.vector.Element | Element to add. |
| index | number | Element index. Only positive numbers. |
Returns:
anychart.graphics.vector.PatternFill - Self instance for method chaining.Try it:
appendTransformationMatrix
Combines the transformation with the given transformation matrix.
Detailed description
Combination is done via matrix multiplication (multiplication to the right).
Illustration shows a shape transformation with the several calls of
Illustration shows a shape transformation with the several calls of
.appendTransformationMatrix(0, 0.5, 1, 0, 0, 0)Params:
| Name | Type | Description |
|---|---|---|
| m00 | number | Scale X. |
| m10 | number | Shear Y. |
| m01 | number | Shear X. |
| m11 | number | Scale Y. |
| m02 | number | Translate X. |
| m12 | number | Translate Y. |
Returns:
anychart.graphics.vector.PatternFill - Self instance for method chaining.Try it:
attr
Getter for the attribute.
Params:
| Name | Type | Description |
|---|---|---|
| key | string | Name of attribute. |
Returns:
* - Attribute value.Try it:
Setter for the attribute.
Params:
| Name | Type | Description |
|---|---|---|
| key | string | Name of attribute. |
| value | * | Value of attribute. |
Returns:
anychart.graphics.vector.PatternFill - Self instance for method chaining.Try it:
circle
Invokes anychart.graphics.vector.Circle class constructor.
Note:
anychart.graphics.vector.Layer does nothing to delete an object after it is used. You have to take care of used objects yourself.
Read more at anychart.graphics.vector.Circle
Note:
anychart.graphics.vector.Layer does nothing to delete an object after it is used. You have to take care of used objects yourself.
Read more at anychart.graphics.vector.Circle
Params:
| Name | Type | Description |
|---|---|---|
| cx | number | Center X, in pixels. |
| cy | number | Center Y, in pixels. |
| radius | number | Radius, in pixels. |
Returns:
anychart.graphics.vector.Circle - An instance of the class for method chaining.Try it:
clip
Gets the clipping rectangle.
Returns:
anychart.graphics.math.Rect - Returns rectangle settings.Sets the clipping rectangle.
Detailed description
Affects display only after render() method call.
Attention! In SVG clip will transform according to transformation, and in VML clip will be surrounding.
Attention! In SVG clip will transform according to transformation, and in VML clip will be surrounding.
Params:
| Name | Type | Description |
|---|---|---|
| value | anychart.graphics.math.Rect | string | Clipping rectangle. |
Returns:
anychart.graphics.vector.PatternFill - Self instance for method chaining.Try it:
cross
Draws a cross set by its circumscribed circle center and radius.
Read more at anychart.graphics.vector.primitives#cross
Read more at anychart.graphics.vector.primitives#cross
Try it:
cursor
Setter for the cursor type.
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| value | anychart.graphics.vector.Cursor | null | Cursor type. |
Returns:
anychart.graphics.vector.PatternFill - Self instance for method chaining.Try it:
desc
Getter for the element description value.
Returns:
string | null | undefined - The element description value.Try it:
Setter for the element description value.
Params:
| Name | Type | Description |
|---|---|---|
| value | string | null | Value to set. |
Returns:
anychart.graphics.vector.PatternFill - Self instance for method chaining.Try it:
diagonalCross
Draws a diagonal cross set by its circumscribed circle center and radius.
Read more at anychart.graphics.vector.primitives#diagonalCross
Read more at anychart.graphics.vector.primitives#diagonalCross
Try it:
diamond
Draws a diamond set by its circumscribed circle center and radius.
Read more at anychart.graphics.vector.primitives#diamond
Read more at anychart.graphics.vector.primitives#diamond
Try it:
disablePointerEvents
Disables the pointer events.
Detailed description
Specifies under what circumstances a given graphics element can be a target element for a pointer event.
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| value | boolean | false | Pointer events property value. |
Returns:
anychart.graphics.vector.PatternFill - Self instance for method chaining.Try it:
disableStrokeScaling
Getter for the element's vector effect property.
Returns:
boolean - The vector effect property. See listing
var element = stage.rect(10, 10, 100, 40); var disableStrokeScaling = element.disableStrokeScaling();
Setter for the element's vector effect property.
Learn more by link.
Learn more by link.
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| enabled | boolean | false | Vector effect property to set. |
Returns:
anychart.graphics.vector.PatternFill - Self instance for method chaining.Try it:
dispose
Disposes element completely.
Removes it from the parent layer, sets links to null, removes it from DOM.
Try it:
domElement
Returns DOM element if element is rendered.
In case of Stage in Suspended state or unbound element - null is returned.
In case of Stage in Suspended state or unbound element - null is returned.
Returns:
Element - DOM element.donut
Draws sector as donut chart element.
Read more at anychart.graphics.vector.primitives#donut
Read more at anychart.graphics.vector.primitives#donut
Try it:
drag
Returns the state flag.
Returns:
boolean | anychart.graphics.math.Rect - Absolute element bounds or flag.Try it:
Turns off/on dragging (moving) of an element.
Detailed description
Sets mode (true - on, false - off) or dragging area for an element,
dragging is always on within an area.
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| value | boolean | anychart.graphics.math.Rect | false | Flag or a dragging area. |
Returns:
anychart.graphics.vector.PatternFill - Self instance for method chaining.Try it:
ellipse
Invokes anychart.graphics.vector.Ellipse class constructor.
Note:
anychart.graphics.vector.Layer does nothing to delete an object after it is used. You have to take care of used objects yourself.
Read more at anychart.graphics.vector.Ellipse
Note:
anychart.graphics.vector.Layer does nothing to delete an object after it is used. You have to take care of used objects yourself.
Read more at anychart.graphics.vector.Ellipse
Params:
| Name | Type | Description |
|---|---|---|
| cx | number | Center X, in pixels. |
| cy | number | Center Y, in pixels. |
| rx | number | Radius X, in pixels. |
| ry | number | Radius Y, in pixels. |
Returns:
anychart.graphics.vector.Ellipse - An instance of the class for method chaining.Try it:
forEachChild
Applies function to all elements in a layer.
Params:
| Name | Type | Description |
|---|---|---|
| callback | function(element:anychart.graphics.vector.Element):void | Function to be applied. |
Returns:
anychart.graphics.vector.PatternFill - Self instance for method chaining.Try it:
Applies the function to all elements of a layer in the given context.
Params:
| Name | Type | Description |
|---|---|---|
| callback | function(element:anychart.graphics.vector.Element):void | Function to be applied. |
| this | Object | this context for the function to be applied. |
Returns:
anychart.graphics.vector.PatternFill - Self instance for method chaining.getAbsoluteBounds
Gets element bounds in absolute coordinates (root element coordinate system).
Returns:
anychart.graphics.math.Rect - Absolute element bounds.Try it:
getAbsoluteHeight
Returns height within root bounds.
See illustrations at anychart.graphics.vector.Element#getAbsoluteWidth
See illustrations at anychart.graphics.vector.Element#getAbsoluteWidth
Returns:
number - Height.Try it:
getAbsoluteWidth
getAbsoluteX
Returns an absolute X (root element coordinate system).
Returns:
number - Absolute X.Try it:
getAbsoluteY
Returns an absolute Y (root element coordinate system).
Returns:
number - Absolute Y.Try it:
getBounds
getChildAt
Returns element by index.
Params:
| Name | Type | Description |
|---|---|---|
| index | number | Element to be returned. |
Returns:
anychart.graphics.vector.PatternFill - Element or null.Try it:
getHeight
getRotationAngle
getStage
Stage object (to which the given element is bound).
Returns:
anychart.graphics.vector.Stage - Stage object.Try it:
getTransformationMatrix
Returns the transformation matrix.
Detailed description
Matrix as an array of six elements:
[
{number} m00 Scale X.
{number} m10 Shear Y.
{number} m01 Shear X.
{number} m11 Scale Y.
{number} m02 Translate X.
{number} m12 Translate Y.
]
[
{number} m00 Scale X.
{number} m10 Shear Y.
{number} m01 Shear X.
{number} m11 Scale Y.
{number} m02 Translate X.
{number} m12 Translate Y.
]
Returns:
Array.<number> - Transformation matrix array.Try it:
getWidth
getX
Returns X in the coordinate system of the parent.
Returns:
number - X in the coordinate system of the parent.Try it:
getY
Returns Y in the coordinate system of the parent.
Returns:
number - Y in the coordinate system of the parent.Try it:
hLine
Draws a thick horizontal line set by its circumscribed circle center and radius.
Read more at anychart.graphics.vector.primitives#hLine
Read more at anychart.graphics.vector.primitives#hLine
Try it:
hasChild
Checks if there is such element in children set.
Params:
| Name | Type | Description |
|---|---|---|
| element | anychart.graphics.vector.Element | Element. |
Returns:
boolean - True if it is a child.hasParent
html
Invokes anychart.graphics.vector.Text class constructor and applies anychart.graphics.vector.Text#htmlText method
to handle HTML formatting.
Note:
anychart.graphics.vector.Layer does nothing to delete an object after it is used. You have to take care of used objects yourself.
Note:
anychart.graphics.vector.Layer does nothing to delete an object after it is used. You have to take care of used objects yourself.
Params:
| Name | Type | Description |
|---|---|---|
| x | number | X-coordinate (Left) of top left corner of text bounds. |
| y | number | Y-coordinate (Top) of top left corner of text bounds. |
| text | string | Text to be displayed. |
| style | anychart.graphics.vector.TextStyle | Text style. More at anychart.graphics.vector.Text#style. |
Returns:
anychart.graphics.vector.Text - An instance of the class for method chaining.Try it:
id
Gets the element identifier.
Detailed description
If it was not set, it will be generated and applied to the DOM.
Returns:
string - Returns element identifier.Try it:
Sets the element identifier.
Params:
| Name | Type | Description |
|---|---|---|
| id | string | Custom identifier. |
Returns:
anychart.graphics.vector.PatternFill - Self instance for method chaining.Try it:
Invokes anychart.graphics.vector.Image class constructor.
Note:
anychart.graphics.vector.Layer does nothing to delete an object after it is used. You need to take care of used objects yourself.
Note:
anychart.graphics.vector.Layer does nothing to delete an object after it is used. You need to take care of used objects yourself.
Params:
| Name | Type | Description |
|---|---|---|
| src | string | IRI (Internationalized Resource Identifiers) for image source. |
| x | number | X coordinate of left-top corner image. |
| y | number | Y coordinate of left-top corner image. |
| width | number | Width of image bounds. |
| height | number | Height of image bounds. |
Returns:
anychart.graphics.vector.Image - Image object instance.Try it:
indexOfChild
Looks for an element in a layer and returns index or -1, if not found.
Params:
| Name | Type | Description |
|---|---|---|
| element | anychart.graphics.vector.Element | Element which index we need to find. |
Returns:
number - Index or -1, or not found.Try it:
layer
Invokes anychart.graphics.vector.Layer class constructor.
Note:
anychart.graphics.vector.Layer does nothing to delete an object after it is used. You have to take care of used objects yourself.
Note:
anychart.graphics.vector.Layer does nothing to delete an object after it is used. You have to take care of used objects yourself.
Returns:
anychart.graphics.vector.PatternFill - Self instance for method chaining.Try it:
listen
Adds an event listener.
Detailed description
A listener can only be added once to an object and if it is added again the key for the listener is
returned. Note that if the existing listener is a one-off listener (registered via listenOnce), it will no longer
be a one-off listener after a call to listen().
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| type | string | The event type id. | |
| listener | function(e:Object):boolean|undefined | Callback method. | |
| useCapture | boolean | false | Whether to fire in capture phase. Learn more about capturing https://javascript.info/bubbling-and-capturing |
| listenerScope | Object | Object in whose scope to call the listener. |
Returns:
Object - Unique key for the listener.Try it:
listenOnce
Adds an event listener that is removed automatically after the listener fired once.
Detailed description
If an existing listener already exists, listenOnce will do nothing.
In particular, if the listener was previously registered via listen(), listenOnce() will not turn the listener into a
one-off listener. Similarly, if there is already an existing one-off listener, listenOnce does not modify
the listeners (it is still a once listener).
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| type | string | The event type id. | |
| listener | function(e:Object):boolean|undefined | Callback method. | |
| useCapture | boolean | false | Whether to fire in capture phase. Learn more about capturing https://javascript.info/bubbling-and-capturing |
| listenerScope | Object | Object in whose scope to call the listener. |
Returns:
Object - Unique key for the listener.Try it:
numChildren
parent
Returns the parent layer.
Returns:
anychart.graphics.vector.PatternFill | anychart.graphics.vector.Stage - Instance of element current layer.Try it:
Adds element to the given layer.
Params:
| Name | Type | Description |
|---|---|---|
| parent | anychart.graphics.vector.Layer | anychart.graphics.vector.Stage | Parent layer. |
Returns:
anychart.graphics.vector.PatternFill - Self instance for method chaining.Try it:
path
Invokes anychart.graphics.vector.Path class constructor.
Note:
anychart.graphics.vector.Layer does nothing to delete an object after it is used. You have to take care of used objects yourself.
Read more at: anychart.graphics.vector.Path
Note:
anychart.graphics.vector.Layer does nothing to delete an object after it is used. You have to take care of used objects yourself.
Read more at: anychart.graphics.vector.Path
Returns:
anychart.graphics.vector.Path - An instance of the class for method chaining.Try it:
pie
Draws sector as pie chart element.
Read more at anychart.graphics.vector.primitives#pie
Read more at anychart.graphics.vector.primitives#pie
Try it:
rect
Invokes anychart.graphics.vector.Rect class constructor.
Note:
anychart.graphics.vector.Layer does nothing to delete an object after it is used. You have to take care of used objects yourself.
Note:
anychart.graphics.vector.Layer does nothing to delete an object after it is used. You have to take care of used objects yourself.
Params:
| Name | Type | Description |
|---|---|---|
| x | number | X (Left) of top left rectangle corner. |
| y | number | Y (Top) of to left rectangle corner. |
| width | number | Rectangle width. |
| height | number | Rectangle height. |
Returns:
anychart.graphics.vector.Rect - An instance of the class for method chaining.Try it:
remove
Current element removes itself from the parent layer.
Returns:
anychart.graphics.vector.PatternFill - Self instance for method chaining.Try it:
removeAllListeners
Removes all listeners from this listenable.
Detailed description
If type is specified, it will only remove listeners of the particular type. otherwise all registered
listeners will be removed.
Params:
| Name | Type | Description |
|---|---|---|
| type | string | Type of event to remove, default is to remove all types. |
Returns:
number - Number of listeners removed.Try it:
removeChild
Removes element from a layer.
All changes in DOM will happen instantly, except anychart.graphics.vector.Stage#suspend.
Note: this method doesn't remove element, it just breaks the link between the element and the layer.
This is an extension of anychart.graphics.vector.Layer#removeChildAt method.
All changes in DOM will happen instantly, except anychart.graphics.vector.Stage#suspend.
Note: this method doesn't remove element, it just breaks the link between the element and the layer.
This is an extension of anychart.graphics.vector.Layer#removeChildAt method.
Params:
| Name | Type | Description |
|---|---|---|
| element | anychart.graphics.vector.Element | Element to remove or its id. |
Returns:
anychart.graphics.vector.PatternFill - Removed element or null.Try it:
removeChildAt
Removes element from a layer by index.
All changes in DOM will happen instantly, except anychart.graphics.vector.Stage#suspend.
Note: this method doesn't remove element, it just breaks the link between the element and the layer.
All changes in DOM will happen instantly, except anychart.graphics.vector.Stage#suspend.
Note: this method doesn't remove element, it just breaks the link between the element and the layer.
Params:
| Name | Type | Description |
|---|---|---|
| index | number | Index of element to be removed. |
Returns:
anychart.graphics.vector.PatternFill - Removed element or null.Try it:
removeChildren
Removes all children from a layer.
Returns:
Array.<anychart.graphics.vector.Element> - Array of removed elements.Try it:
rotate
Rotates a shape around the given rotation point.
Detailed description
If rotation point is not set then rotation point is (0, 0).

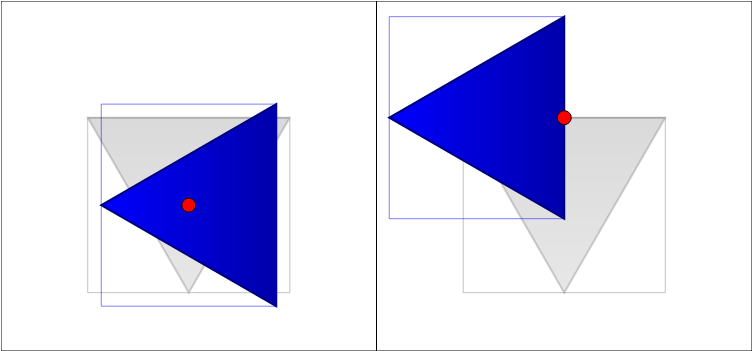

Left illustration shows 20 degrees rotation with the default rotation point.
Right illustration shows 20 degrees rotation with the given rotation point.
Rotation points are marked with red, initial position of shapes is marked with gray.
Left illustration shows 20 degrees rotation with the default rotation point.
.rotate(20)Right illustration shows 20 degrees rotation with the given rotation point.
.rotate(20, x, y)Rotation points are marked with red, initial position of shapes is marked with gray.
Params:
| Name | Type | Description |
|---|---|---|
| degrees | number | Rotation angle in degrees. |
| cx | number | Rotation point X. |
| cy | number | Rotation point Y. |
Returns:
anychart.graphics.vector.PatternFill - Self instance for method chaining.Try it:
rotateByAnchor
Rotates a shape around the given anchor.
Detailed description
If anchor is not set anychart.graphics.vector.Anchor.CENTER is the default.
Left illustration shows 90 degrees rotation around the default anchor.
Right illustration shows 90 degrees rotation around the given anchor.
Rotation points are marked with red, initial position of shapes is marked with gray.
Left illustration shows 90 degrees rotation around the default anchor.
.rotateByAnchor(90)Right illustration shows 90 degrees rotation around the given anchor.
.rotateByAnchor(90, anychart.graphics.vector.Anchor.CENTER_TOP)Rotation points are marked with red, initial position of shapes is marked with gray.
Params:
| Name | Type | Description |
|---|---|---|
| degrees | number | Rotation angle in degrees. |
| anchor | anychart.graphics.vector.Anchor | string | Rotation anchor. |
Returns:
anychart.graphics.vector.PatternFill - Self instance for method chaining.Try it:
roundedInnerRect
Draws rectangle with corners rounded inside.
Read more at anychart.graphics.vector.primitives#roundedInnerRect
Read more at anychart.graphics.vector.primitives#roundedInnerRect
Try it:
roundedRect
Draws rectangle with rounded corners.
Read more at anychart.graphics.vector.primitives#roundedRect
Read more at anychart.graphics.vector.primitives#roundedRect
Try it:
scale
Scales a shape. Scaling center is set in the coordinate system of the parent.
Detailed description
If the scaling center is not set it defaults to (0, 0).

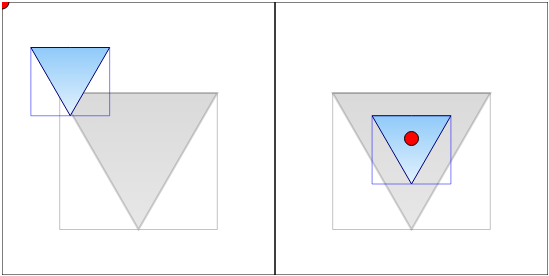

Left illustration shows default point scaling.
Right illustration shows scaling with the scaling center set.
Scaling center is marked with red, initial state is marked with gray.
Left illustration shows default point scaling.
.scale(0.5, 0.5,)Right illustration shows scaling with the scaling center set.
.scale(0.5, 0.5, x, y)Scaling center is marked with red, initial state is marked with gray.
Params:
| Name | Type | Description |
|---|---|---|
| sx | number | X scaling factor. |
| sy | number | Y scaling factor. |
| cx | number | Scaling point X. |
| cy | number | Scaling point Y. |
Returns:
anychart.graphics.vector.PatternFill - Self instance for method chaining.Try it:
scaleByAnchor
Scales a shape by anchor. Scaling center is set as an anchor.
Detailed description

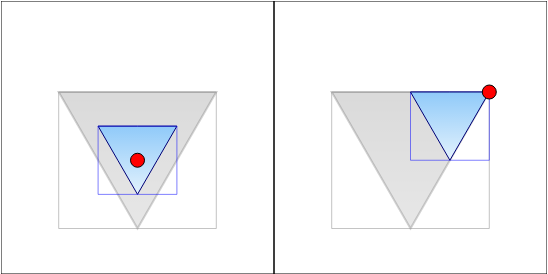

If anchor is not set it defaults to anychart.graphics.vector.Anchor.CENTER.
Left illustration shows scaling with the default anchor.
Right illustration shows scaling with the anchor set.
Scaling center is marked with red, initial state is marked with gray.
Left illustration shows scaling with the default anchor.
.scaleByAnchor(0.5, 0.5)Right illustration shows scaling with the anchor set.
.scaleByAnchor(0.5, 0.5, anychart.graphics.vector.Anchor.RIGHT_TOP)Scaling center is marked with red, initial state is marked with gray.
Params:
| Name | Type | Description |
|---|---|---|
| sx | number | X scaling factor. |
| sy | number | Y scaling factor. |
| anchor | anychart.graphics.vector.Anchor | string | Scaling anchor point. |
Returns:
anychart.graphics.vector.PatternFill - Self instance for method chaining.Try it:
setPosition
Sets top left corner of a shape (transformation taken into account) in the coordinate system of the parent.
Detailed description
Note: See illustration at anychart.graphics.vector.Element#translate, the only difference
between anychart.graphics.vector.Element#translate and this method is the fact that
that this method resets the current transformation, and anychart.graphics.vector.Element#translate adds movement
to the existing transformation.
Params:
| Name | Type | Description |
|---|---|---|
| x | number | X coordinate. |
| y | number | Y coordinate. |
Returns:
anychart.graphics.vector.PatternFill - Self instance for method chaining.Try it:
setRotation
Rotates a shape around the given point.
Detailed description
Note: See illustration at anychart.graphics.vector.Element#rotate, the only difference
between anychart.graphics.vector.Element#rotate and this method is the fact
that this method resets the current transformation, and anychart.graphics.vector.Element#rotate adds rotation
to the existing transformation.
Params:
| Name | Type | Description |
|---|---|---|
| degrees | number | Rotation angle in degrees. |
| cx | number | Rotation point X. |
| cy | number | Rotation point Y. |
Returns:
anychart.graphics.vector.PatternFill - Self instance for method chaining.Try it:
setRotationByAnchor
Rotates a shape around the given anchor.
Detailed description
Note: See illustration at anychart.graphics.vector.Element#rotateByAnchor, the only difference
between anychart.graphics.vector.Element#rotateByAnchor and this method is the fact
that this method resets the current transformation, and anychart.graphics.vector.Element#rotate adds rotation
to the existing transformation.
Params:
| Name | Type | Description |
|---|---|---|
| degrees | number | Rotation angle in degrees. |
| anchor | anychart.graphics.vector.Anchor | string | Rotation anchor. |
Returns:
anychart.graphics.vector.PatternFill - Self instance for method chaining.Try it:
setTransformationMatrix
Sets the transformation matrix.
Detailed description
Note: See illustration at anychart.graphics.vector.Element#appendTransformationMatrix,
the difference between anychart.graphics.vector.Element#appendTransformationMatrix and this method
is that anychart.graphics.vector.Element#appendTransformationMatrix combined transformation with
the current, and this method resets the current.
Params:
| Name | Type | Description |
|---|---|---|
| m00 | number | Scale X. |
| m10 | number | Shear Y. |
| m01 | number | Shear X. |
| m11 | number | Scale Y. |
| m02 | number | Translate X. |
| m12 | number | Translate Y. |
Returns:
anychart.graphics.vector.PatternFill - Self instance for method chaining.Try it:
star
Draws multi-pointed star.
Read more at anychart.graphics.vector.primitives#star
Read more at anychart.graphics.vector.primitives#star
Try it:
star10
Draws ten-pointed star.
Read more at anychart.graphics.vector.primitives#star10
Read more at anychart.graphics.vector.primitives#star10
Try it:
star4
Draws four-pointed star.
Read more at anychart.graphics.vector.primitives#star4
Read more at anychart.graphics.vector.primitives#star4
Try it:
star5
Draws five-pointed star.
Read more at anychart.graphics.vector.primitives#star5
Read more at anychart.graphics.vector.primitives#star5
Try it:
star6
Draws six-pointed star.
Read more at anychart.graphics.vector.primitives#star6
Read more at anychart.graphics.vector.primitives#star6
Try it:
star7
Draws seven-pointed star.
Read more at anychart.graphics.vector.primitives#star7
Read more at anychart.graphics.vector.primitives#star7
Try it:
swapChildren
Swaps children.
Params:
| Name | Type | Description |
|---|---|---|
| element1 | anychart.graphics.vector.Element | First element. |
| element2 | anychart.graphics.vector.Element | Second element. |
Returns:
anychart.graphics.vector.PatternFill - Self instance for method chaining.Try it:
swapChildrenAt
Swaps children by indexes.
Params:
| Name | Type | Description |
|---|---|---|
| index1 | number | First element index. |
| index2 | number | Second element index. |
Returns:
anychart.graphics.vector.PatternFill - Self instance for method chaining.Try it:
text
Invokes anychart.graphics.vector.Text class constructor.
Note:
anychart.graphics.vector.Layer does nothing to delete an object after it is used. You have to take care of used objects yourself.
Note:
anychart.graphics.vector.Layer does nothing to delete an object after it is used. You have to take care of used objects yourself.
Params:
| Name | Type | Description |
|---|---|---|
| x | number | X-coordinate (Left) of left top corner of text bounds. |
| y | number | Y-coordinate (Top) of left top corner of text bounds. |
| text | string | Text to be displayed. |
| style | anychart.graphics.vector.TextStyle | Text style. More at anychart.graphics.vector.Text#style. |
Returns:
anychart.graphics.vector.Text - An instance of the class for method chaining.title
Getter for the element title value.
Returns:
string | null | undefined - The element title value.Try it:
Setter for the element title value.
Params:
| Name | Type | Description |
|---|---|---|
| value | string | null | Value to set. |
Returns:
anychart.graphics.vector.PatternFill - Self instance for method chaining.Try it:
translate
Moves a shape taking an account the transformation.
Detailed description
Movement happens in a shape coordinate system (not the coordinate system of the parent).
Illustration shows a shape movement when
Illustration shows a shape movement when
.translate(20, 10) is invoked several times.Params:
| Name | Type | Description |
|---|---|---|
| tx | number | X movement amount. |
| ty | number | Y movement amount. |
Returns:
anychart.graphics.vector.PatternFill - Self instance for method chaining.Try it:
triangleDown
Draws a triangle heading downwards set by its circumscribed circle center and radius.
Read more at anychart.graphics.vector.primitives#triangleDown
Read more at anychart.graphics.vector.primitives#triangleDown
Try it:
triangleLeft
Draws a triangle heading leftwards set by its circumscribed circle center and radius.
Read more at anychart.graphics.vector.primitives#triangleLeft
Read more at anychart.graphics.vector.primitives#triangleLeft
Try it:
triangleRight
Draws a triangle heading rightwards set by its circumscribed circle center and radius.
Read more at anychart.graphics.vector.primitives#triangleRight
Read more at anychart.graphics.vector.primitives#triangleRight
Try it:
triangleUp
Draws a triangle heading upwards set by its circumscribed circle center and radius.
Read more at anychart.graphics.vector.primitives#triangleUp
Read more at anychart.graphics.vector.primitives#triangleUp
Try it:
truncatedRect
Draws rectangle with cut corners.
Read more at anychart.graphics.vector.primitives#truncatedRect
Read more at anychart.graphics.vector.primitives#truncatedRect
Try it:
unlisten
Removes an event listener which was added with listen() or listenOnce().
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| type | string | The event type id. | |
| listener | function(e:Object):boolean|undefined | Callback method. | |
| useCapture | boolean | false | Whether to fire in capture phase. Learn more about capturing https://javascript.info/bubbling-and-capturing |
| listenerScope | Object | Object in whose scope to call the listener. |
Returns:
boolean - Whether any listener was removed.Try it:
vLine
Draws a thick vertical line set by its circumscribed circle center and radius.
Read more at anychart.graphics.vector.primitives#vLine
Read more at anychart.graphics.vector.primitives#vLine
Try it:
visible
Hides or shows an element.
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| isVisible | boolean | true | Visibility flag. |
Returns:
anychart.graphics.vector.PatternFill - Self instance for method chaining.Try it:
zIndex
Sets the element's zIndex.
Params:
| Name | Type | Description |
|---|---|---|
| value | number | Z-index to set. |
Returns:
anychart.graphics.vector.PatternFill - Self instance for method chaining.Try it:
