class anychart.graphics.vector.Path Improve this Doc
Extends: anychart.graphics.vector.Shape
Path class.
Path is sequence of segments of different type, it can be opened or closed.
To define the internal fill this rule is used EVEN-ODD.
Path always starts with anychart.graphics.vector.Path#moveTo command.
Do not invoke constructor directly. Use anychart.graphics.vector.Stage#path or
anychart.graphics.vector.Layer#path to create stage or layer bound path.
To create unbound path use anychart.graphics#path
See also:
anychart.graphics.vector.Stage#path
anychart.graphics.vector.Layer#path
anychart.graphics#path
Methods Overview
| Coloring | |
| fill() | Fill settings. |
| stroke() | Stroke settings. |
| Events | |
| listen() | Adds an event listener. |
| listenOnce() | Adds an event listener that is removed automatically after the listener fired once. |
| removeAllListeners() | Removes all listeners from this listenable. |
| unlisten() | Removes an event listener which was added with listen() or listenOnce(). |
| Interactive | |
| drag() | Dragging setting. |
| Interactivity | |
| visible() | Visibility flag |
| Size and Position | |
| appendTransformationMatrix() | Combines the transformation with the given transformation matrix. |
| getAbsoluteBounds() | Gets element bounds in absolute coordinates (root element coordinate system). |
| getAbsoluteHeight() | Returns height within root bounds. |
| getAbsoluteWidth() | Returns width within root bounds. |
| getAbsoluteX() | Returns an absolute X (root element coordinate system). |
| getAbsoluteY() | Returns an absolute Y (root element coordinate system). |
| getBounds() | Returns the bounds. |
| getHeight() | Returns the height. |
| getRotationAngle() | Returns the rotation angle in degrees. |
| getTransformationMatrix() | Returns the transformation matrix. |
| getWidth() | Returns the width. |
| getX() | Returns X in the coordinate system of the parent. |
| getY() | Returns Y in the coordinate system of the parent. |
| rotate() | Rotates a shape around the given rotation point. |
| rotateByAnchor() | Rotates a shape around the given anchor. |
| scale() | Scales a shape. Scaling center is set in the coordinate system of the parent. |
| scaleByAnchor() | Scales a shape by anchor. Scaling center is set as an anchor. |
| setPosition() | Sets top left corner of a shape (transformation taken into account) in the coordinate system of the parent. |
| setRotation() | Rotates a shape around the given point. |
| setRotationByAnchor() | Rotates a shape around the given anchor. |
| setTransformationMatrix() | Sets the transformation matrix. |
| translate() | Moves a shape taking an account the transformation. |
| zIndex() | Z-index setting. |
| Miscellaneous | |
| arcTo() | Adds a command to the path that draws an arc of an ellipse. |
| arcToAsCurves() | This method is similar to anychart.graphics.vector.Path#arcTo, but in this case the arc is approximated by Bezier curves. |
| arcToByEndPoint() | Adds a command to the path that draws an arc of an ellipse. |
| attr() | Attribute setting |
| circularArc() | Adds a command to the path that draws a circular arc. |
| clear() | Resets all path operations. |
| clip() | Clipping setting. |
| close() | Adds a command that closes the path by connecting the last point with the first straight line. |
| cursor() | Cursor type. |
| curveTo() | Adds specified points to the path, drawing sequentially a cubic Bezier curve from the current point to the next. |
| desc() | Description setting |
| disablePointerEvents() | Pointer events setting. |
| disableStrokeScaling() | Vector effect property |
| dispose() | Disposes element completely. |
| domElement() | Returns DOM element if element is rendered. |
| getCurrentPoint() | Returns the last coordinates added to the path. |
| getLength() | Gets path length. |
| getStage() | Stage object (to which the given element is bound). |
| hasParent() | Whether parent element is set. |
| id() | Element identifier |
| lineTo() | Adds specified points to the current path, drawing sequentially a straight line through the specified coordinates. |
| moveTo() | Moves path cursor position to a specified coordinate. |
| parent() | Parent layer. |
| quadraticCurveTo() | Adds specified points to the path, drawing sequentially a quadratic Bezier curve from the current point to the next. |
| remove() | Current element removes itself from the parent layer. |
| strokeThickness() | Stroke thickness setting. |
| title() | Title setting |
Methods Description
appendTransformationMatrix
Combines the transformation with the given transformation matrix.
Detailed description
Combination is done via matrix multiplication (multiplication to the right).
Illustration shows a shape transformation with the several calls of
Illustration shows a shape transformation with the several calls of
.appendTransformationMatrix(0, 0.5, 1, 0, 0, 0)Params:
| Name | Type | Description |
|---|---|---|
| m00 | number | Scale X. |
| m10 | number | Shear Y. |
| m01 | number | Shear X. |
| m11 | number | Scale Y. |
| m02 | number | Translate X. |
| m12 | number | Translate Y. |
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.Try it:
arcTo
Adds a command to the path that draws an arc of an ellipse.
An ellipse with radius rx, ry, starting from an angle fromAngle, with an angular length extent.
The positive direction is considered the direction from a positive direction of the X-axis to a positive direction of the Y-axis, that is clockwise.
An ellipse with radius rx, ry, starting from an angle fromAngle, with an angular length extent.
The positive direction is considered the direction from a positive direction of the X-axis to a positive direction of the Y-axis, that is clockwise.
Detailed description

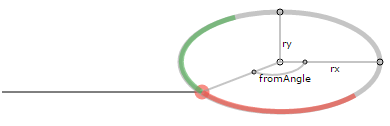

The black line marks the current path.
The red point is the point from which the arc is drawn.
According to the given parameters, an ellipse is plotted with radii rx and ry, and an angle fromAngle, which defines the position of the ellipse against the red point.
Then an ellipse arc of a given angular length extend is drawn (the arc is marked green if extend > 0 and red if extend < 0).
The black line marks the current path.
The red point is the point from which the arc is drawn.
According to the given parameters, an ellipse is plotted with radii rx and ry, and an angle fromAngle, which defines the position of the ellipse against the red point.
Then an ellipse arc of a given angular length extend is drawn (the arc is marked green if extend > 0 and red if extend < 0).
Params:
| Name | Type | Description |
|---|---|---|
| rx | number | The X-axis radius of the ellipse. |
| ry | number | The Y-axis radius of the ellipse. |
| fromAngle | number | The starting angle, measured in degrees in a clockwise direction. |
| extent | number | The angular length of the arc. |
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.Try it:
arcToAsCurves
This method is similar to anychart.graphics.vector.Path#arcTo, but in this case the arc is approximated by Bezier curves.
Detailed description
Attention! The method is recommended when transformations are used: using the ordinary
anychart.graphics.vector.Path#arcTo and anychart.graphics.vector.Path#arcToByEndPoint methods with transformations
leads to productivity loss.
java.awt.geom.ArcIterator algorithm adaptation
You can find an illustration of how the method works, and examples in the anychart.graphics.vector.Path#arcTo method description.
The only difference is that this method draws an arc using a set of curves.
java.awt.geom.ArcIterator algorithm adaptation
You can find an illustration of how the method works, and examples in the anychart.graphics.vector.Path#arcTo method description.
The only difference is that this method draws an arc using a set of curves.
Params:
| Name | Type | Description |
|---|---|---|
| rx | number | The X-axis radius of the ellipse. |
| ry | number | The Y-axis radius of the ellipse. |
| fromAngle | number | The starting angle, measured in degrees in a clockwise direction. |
| extent | number | The angular length of the arc. |
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.arcToByEndPoint
Adds a command to the path that draws an arc of an ellipse.
An arc of an ellipse with radius rx, ry rx, ry from the current point to a point x, y.
The largeArc and clockwiseArc flags define which of the 4 possible arcs is drawn.
Read more at https://www.w3.org/TR/SVG/implnote.html#ArcImplementationNotes
An arc of an ellipse with radius rx, ry rx, ry from the current point to a point x, y.
The largeArc and clockwiseArc flags define which of the 4 possible arcs is drawn.
Read more at https://www.w3.org/TR/SVG/implnote.html#ArcImplementationNotes
Detailed description

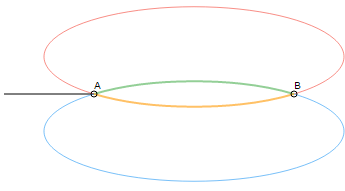

There are several ways to get from point A a to point B, given the same x, y, rx, ry parameters. The way to get to point B, is defined by the pair largeArc, clockwiseArc:
There are several ways to get from point A a to point B, given the same x, y, rx, ry parameters. The way to get to point B, is defined by the pair largeArc, clockwiseArc:
- largeArc - defines if the larger (red and blue) or the smaller (green and yellow) arc is drawn;
- clockwiseArc - defines if the arc is drawn clockwise (red and green) or counterclockwise (yellow and blue).
Params:
| Name | Type | Description |
|---|---|---|
| x | number | The X-coordinate of the arc end. |
| y | number | The Y-coordinate of the arc end. |
| rx | number | The X-axis radius of the ellipse. |
| ry | number | The Y-axis radius of the ellipse. |
| largeArc | boolean | A flag allowing to draw either the smaller or the larger arc. |
| clockwiseArc | boolean | A flag allowing to draw an arc either in a clockwise or in a counterclockwise direction. |
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.Try it:
attr
Getter for the attribute.
Params:
| Name | Type | Description |
|---|---|---|
| key | string | Name of attribute. |
Returns:
* - Attribute value.Try it:
Setter for the attribute.
Params:
| Name | Type | Description |
|---|---|---|
| key | string | Name of attribute. |
| value | * | Value of attribute. |
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.Try it:
circularArc
Adds a command to the path that draws a circular arc.
An arc with a center in (cx, cy) start angle (from) and end angle (from + sweep), with clockwise and counterclock drawing option.
An arc with a center in (cx, cy) start angle (from) and end angle (from + sweep), with clockwise and counterclock drawing option.
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| cx | number | Center x. | |
| cy | number | Center y. | |
| rx | number | The X-axis radius of the ellipse. | |
| ry | number | The Y-axis radius of the ellipse. | |
| fromAngle | number | The starting angle, measured in degrees in a clockwise direction. | |
| sweep | number | Sweep angle in degrees. | |
| lineTo | boolean | false | Line to start point. If set to true - anychart.graphics.vector.Path#lineTo will be used instead of anychart.graphics.vector.Path#moveTo. |
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.Try it:
clear
Resets all path operations.
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.Try it:
clip
Gets the clipping rectangle.
Returns:
anychart.graphics.math.Rect - Returns rectangle settings.Sets the clipping rectangle.
Detailed description
Affects display only after render() method call.
Attention! In SVG clip will transform according to transformation, and in VML clip will be surrounding.
Attention! In SVG clip will transform according to transformation, and in VML clip will be surrounding.
Params:
| Name | Type | Description |
|---|---|---|
| value | anychart.graphics.math.Rect | string | Clipping rectangle. |
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.Try it:
close
Adds a command that closes the path by connecting the last point with the first straight line.
Detailed description
Assume that some path has been being drawn. After calling the close method, the current point B will be connected with the beginning of the path (point A) by a straight line (marked red).
Assume that some path has been being drawn. After calling the close method, the current point B will be connected with the beginning of the path (point A) by a straight line (marked red).
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.Try it:
cursor
Setter for the cursor type.
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| value | anychart.graphics.vector.Cursor | null | Cursor type. |
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.Try it:
curveTo
Adds specified points to the path, drawing sequentially a cubic Bezier curve from the current point to the next.
Each curve is defined by 3 points (6 coordinates) - two control points and an endpoint.
Each curve is defined by 3 points (6 coordinates) - two control points and an endpoint.
Detailed description
The cursor is set to the point A.
Then the curve goes to the point B through the inflection points P1 and P2.
Next the curve goes to the point C through the inflection points P3 and P4.
Inflection points can be placed anywhere, but there must be two of them.
The cursor is set to the point A.
Then the curve goes to the point B through the inflection points P1 and P2.
Next the curve goes to the point C through the inflection points P3 and P4.
Inflection points can be placed anywhere, but there must be two of them.
Params:
| Name | Type | Description |
|---|---|---|
| control1X | number | The first control point's X-coordinate. |
| control1Y | number | The first control point's Y-coordinate. |
| control2X | number | The second control point's X-coordinate. |
| control2Y | number | The second control point's Y-coordinate. |
| endX | number | The endpoint's X-coordinate. |
| endY | number | The endpoint's Y-coordinate. |
| var_args | number | The coordinates, defining curves, in sets of 6: first control points, then an endpoint (in the same order as the primary parameters). |
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.desc
Getter for the element description value.
Returns:
string | null | undefined - The element description value.Try it:
Setter for the element description value.
Params:
| Name | Type | Description |
|---|---|---|
| value | string | null | Value to set. |
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.Try it:
disablePointerEvents
Disables the pointer events.
Detailed description
Specifies under what circumstances a given graphics element can be a target element for a pointer event.
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| value | boolean | false | Pointer events property value. |
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.Try it:
disableStrokeScaling
Getter for the element's vector effect property.
Returns:
boolean - The vector effect property. See listing
var element = stage.rect(10, 10, 100, 40); var disableStrokeScaling = element.disableStrokeScaling();
Setter for the element's vector effect property.
Learn more by link.
Learn more by link.
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| enabled | boolean | false | Vector effect property to set. |
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.Try it:
dispose
Disposes element completely.
Removes it from the parent layer, sets links to null, removes it from DOM.
Try it:
domElement
Returns DOM element if element is rendered.
In case of Stage in Suspended state or unbound element - null is returned.
In case of Stage in Suspended state or unbound element - null is returned.
Returns:
Element - DOM element.drag
Returns the state flag.
Returns:
boolean | anychart.graphics.math.Rect - Absolute element bounds or flag.Try it:
Turns off/on dragging (moving) of an element.
Detailed description
Sets mode (true - on, false - off) or dragging area for an element,
dragging is always on within an area.
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| value | boolean | anychart.graphics.math.Rect | false | Flag or a dragging area. |
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.Try it:
fill
Gets the fill settings.
Returns:
anychart.graphics.vector.Fill - Returns the fill settings (empty fill is 'none").Try it:
Sets a fill as an object or a string.
Detailed description
Supported objects:
Or a color as string. Can be combined with opacity: 'Color Opacity' - 'red .5'.
Params:
| Name | Type | Description |
|---|---|---|
| color | anychart.graphics.vector.Fill | Fill as object or string. |
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.Try it:
Sets a fill with opacity.
Detailed description
If color is set as string, like 'red .5', it has priority over opt_opacity, which means
if fill is set as rect.fill('red 0.3', 0.7), opacity will be 0.3.
Params:
| Name | Type | Description |
|---|---|---|
| color | string | Color as string. |
| opacity | number | Opacity. |
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.Try it:
Linear gradient fill.
Detailed description
Three modes are available:
In this mode the result angle will visually correspond the original setting, non regarding browser scaling duplication (so, for objects that do not have 1:1 proportion with the original figure, the gradient angle will correspond to the initial value due to internal calculations).
ObjectBoundingBox with angle value preservation(the second rectangle on the image)
In this mode, gradient vector is calculated with the preset angle, but the result gradient angle on the rendered page can be changed if the object proportion is not 1:1 in the browser. So visually the result gradient angle may not correspond to the original settings.
UserSpaceOnUse (the third and fourth rectangles on the image)
In this mode gradient settings are added by gradient size and borders/coordinates, and rendering is calculated within those borders. After that, the fill is executed on the element figure according to its coordinates. More about this mode at gradientUnits.
- ObjectBoundingBox with angle value preservation
- ObjectBoundingBox without angle value preservation
- UserSpaceOnUse
Modes:
ObjectBoundingBox without angle value preservation (the first rectangle on the image)In this mode the result angle will visually correspond the original setting, non regarding browser scaling duplication (so, for objects that do not have 1:1 proportion with the original figure, the gradient angle will correspond to the initial value due to internal calculations).
ObjectBoundingBox with angle value preservation(the second rectangle on the image)
In this mode, gradient vector is calculated with the preset angle, but the result gradient angle on the rendered page can be changed if the object proportion is not 1:1 in the browser. So visually the result gradient angle may not correspond to the original settings.
UserSpaceOnUse (the third and fourth rectangles on the image)
In this mode gradient settings are added by gradient size and borders/coordinates, and rendering is calculated within those borders. After that, the fill is executed on the element figure according to its coordinates. More about this mode at gradientUnits.
Params:
| Name | Type | Description |
|---|---|---|
| keys | Array.<(anychart.graphics.vector.GradientKey|string)> | Gradient keys. |
| angle | number | Gradient angle. |
| mode | boolean | anychart.graphics.vector.Rect | Object | Gradient mode. |
| opacity | number | Gradient opacity. |
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.Try it:
Radial gradient fill.
Params:
| Name | Type | Description |
|---|---|---|
| keys | Array.<(anychart.graphics.vector.GradientKey|string)> | Color-stop gradient keys. |
| cx | number | X ratio of center radial gradient. |
| cy | number | Y ratio of center radial gradient. |
| mode | anychart.graphics.math.Rect | If defined then userSpaceOnUse mode else objectBoundingBox. |
| opacity | number | Opacity of the gradient. |
| fx | number | X ratio of focal point. |
| fy | number | Y ratio of focal point. |
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.Try it:
getAbsoluteBounds
Gets element bounds in absolute coordinates (root element coordinate system).
Returns:
anychart.graphics.math.Rect - Absolute element bounds.Try it:
getAbsoluteHeight
Returns height within root bounds.
See illustrations at anychart.graphics.vector.Element#getAbsoluteWidth
See illustrations at anychart.graphics.vector.Element#getAbsoluteWidth
Returns:
number - Height.Try it:
getAbsoluteWidth
getAbsoluteX
Returns an absolute X (root element coordinate system).
Returns:
number - Absolute X.Try it:
getAbsoluteY
Returns an absolute Y (root element coordinate system).
Returns:
number - Absolute Y.Try it:
getBounds
getCurrentPoint
Returns the last coordinates added to the path.
Returns:
anychart.graphics.math.Coordinate - The current coordinates of the cursor.Try it:
getHeight
getLength
getRotationAngle
getStage
Stage object (to which the given element is bound).
Returns:
anychart.graphics.vector.Stage - Stage object.Try it:
getTransformationMatrix
Returns the transformation matrix.
Detailed description
Matrix as an array of six elements:
[
{number} m00 Scale X.
{number} m10 Shear Y.
{number} m01 Shear X.
{number} m11 Scale Y.
{number} m02 Translate X.
{number} m12 Translate Y.
]
[
{number} m00 Scale X.
{number} m10 Shear Y.
{number} m01 Shear X.
{number} m11 Scale Y.
{number} m02 Translate X.
{number} m12 Translate Y.
]
Returns:
Array.<number> - Transformation matrix array.Try it:
getWidth
getX
Returns X in the coordinate system of the parent.
Returns:
number - X in the coordinate system of the parent.Try it:
getY
Returns Y in the coordinate system of the parent.
Returns:
number - Y in the coordinate system of the parent.Try it:
hasParent
id
Gets the element identifier.
Detailed description
If it was not set, it will be generated and applied to the DOM.
Returns:
string - Returns element identifier.Try it:
Sets the element identifier.
Params:
| Name | Type | Description |
|---|---|---|
| id | string | Custom identifier. |
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.Try it:
lineTo
Adds specified points to the current path, drawing sequentially a straight line through the specified coordinates.
Detailed description
The beginning is in the point A(50, 50).
The first line is drawn from the beginning to the point B(100, 100).
Then the path goes on to the point C(50, 110).
From the point C it goes to the point D(50, 140)
and ends in the point E(300, 140).
The beginning is in the point A(50, 50).
The first line is drawn from the beginning to the point B(100, 100).
Then the path goes on to the point C(50, 110).
From the point C it goes to the point D(50, 140)
and ends in the point E(300, 140).
Params:
| Name | Type | Description |
|---|---|---|
| x | number | A target point's X-coordinate. |
| y | number | A target point's Y-coordinate. |
| var_args | number | The target points' coordinates: each odd parameter is interpreted as X and each even as Y. |
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.listen
Adds an event listener.
Detailed description
A listener can only be added once to an object and if it is added again the key for the listener is
returned. Note that if the existing listener is a one-off listener (registered via listenOnce), it will no longer
be a one-off listener after a call to listen().
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| type | string | The event type id. | |
| listener | function(e:Object):boolean|undefined | Callback method. | |
| useCapture | boolean | false | Whether to fire in capture phase. Learn more about capturing https://javascript.info/bubbling-and-capturing |
| listenerScope | Object | Object in whose scope to call the listener. |
Returns:
Object - Unique key for the listener.Try it:
listenOnce
Adds an event listener that is removed automatically after the listener fired once.
Detailed description
If an existing listener already exists, listenOnce will do nothing.
In particular, if the listener was previously registered via listen(), listenOnce() will not turn the listener into a
one-off listener. Similarly, if there is already an existing one-off listener, listenOnce does not modify
the listeners (it is still a once listener).
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| type | string | The event type id. | |
| listener | function(e:Object):boolean|undefined | Callback method. | |
| useCapture | boolean | false | Whether to fire in capture phase. Learn more about capturing https://javascript.info/bubbling-and-capturing |
| listenerScope | Object | Object in whose scope to call the listener. |
Returns:
Object - Unique key for the listener.Try it:
moveTo
Moves path cursor position to a specified coordinate.
Remember that if you call the moveTo method a few times in a row, only the last call will be applied.
Params:
| Name | Type | Description |
|---|---|---|
| x | number | The target point's X-coordinate. |
| y | number | The target point's Y-coordinate. |
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.Try it:
parent
Returns the parent layer.
Returns:
anychart.graphics.vector.Layer | anychart.graphics.vector.Stage - Instance of element current layer.Try it:
Adds element to the given layer.
Params:
| Name | Type | Description |
|---|---|---|
| parent | anychart.graphics.vector.Layer | anychart.graphics.vector.Stage | Parent layer. |
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.Try it:
quadraticCurveTo
Adds specified points to the path, drawing sequentially a quadratic Bezier curve from the current point to the next.
Each curve is defined by 2 points (4 coordinates) - a control point and an endpoint.
Detailed description
The cursor is set to the point A.
Then the curve goes to the point B through the inflection point P1.
Next the curve goes to the point C through the inflection point P2.
The inflection point can be placed anywhere, and there must be one such point.
The cursor is set to the point A.
Then the curve goes to the point B through the inflection point P1.
Next the curve goes to the point C through the inflection point P2.
The inflection point can be placed anywhere, and there must be one such point.
Params:
| Name | Type | Description |
|---|---|---|
| controlX | number | The control point's X-coordinate. |
| controlY | number | The control point's Y-coordinate. |
| endX | number | The endpoint's X-coordinate. |
| endY | number | The endpoint's Y-coordinate. |
| var_args | number | coordinates, defining curves, in sets of four: first the control point, then an endpoint (in the same order as the primary parameters). |
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.remove
Current element removes itself from the parent layer.
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.Try it:
removeAllListeners
Removes all listeners from this listenable.
Detailed description
If type is specified, it will only remove listeners of the particular type. otherwise all registered
listeners will be removed.
Params:
| Name | Type | Description |
|---|---|---|
| type | string | Type of event to remove, default is to remove all types. |
Returns:
number - Number of listeners removed.Try it:
rotate
Rotates a shape around the given rotation point.
Detailed description
If rotation point is not set then rotation point is (0, 0).
Left illustration shows 20 degrees rotation with the default rotation point.
Right illustration shows 20 degrees rotation with the given rotation point.
Rotation points are marked with red, initial position of shapes is marked with gray.
Left illustration shows 20 degrees rotation with the default rotation point.
.rotate(20)Right illustration shows 20 degrees rotation with the given rotation point.
.rotate(20, x, y)Rotation points are marked with red, initial position of shapes is marked with gray.
Params:
| Name | Type | Description |
|---|---|---|
| degrees | number | Rotation angle in degrees. |
| cx | number | Rotation point X. |
| cy | number | Rotation point Y. |
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.Try it:
rotateByAnchor
Rotates a shape around the given anchor.
Detailed description
If anchor is not set anychart.graphics.vector.Anchor.CENTER is the default.
Left illustration shows 90 degrees rotation around the default anchor.
Right illustration shows 90 degrees rotation around the given anchor.
Rotation points are marked with red, initial position of shapes is marked with gray.
Left illustration shows 90 degrees rotation around the default anchor.
.rotateByAnchor(90)Right illustration shows 90 degrees rotation around the given anchor.
.rotateByAnchor(90, anychart.graphics.vector.Anchor.CENTER_TOP)Rotation points are marked with red, initial position of shapes is marked with gray.
Params:
| Name | Type | Description |
|---|---|---|
| degrees | number | Rotation angle in degrees. |
| anchor | anychart.graphics.vector.Anchor | string | Rotation anchor. |
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.Try it:
scale
Scales a shape. Scaling center is set in the coordinate system of the parent.
Detailed description
If the scaling center is not set it defaults to (0, 0).
Left illustration shows default point scaling.
Right illustration shows scaling with the scaling center set.
Scaling center is marked with red, initial state is marked with gray.
Left illustration shows default point scaling.
.scale(0.5, 0.5,)Right illustration shows scaling with the scaling center set.
.scale(0.5, 0.5, x, y)Scaling center is marked with red, initial state is marked with gray.
Params:
| Name | Type | Description |
|---|---|---|
| sx | number | X scaling factor. |
| sy | number | Y scaling factor. |
| cx | number | Scaling point X. |
| cy | number | Scaling point Y. |
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.Try it:
scaleByAnchor
Scales a shape by anchor. Scaling center is set as an anchor.
Detailed description
If anchor is not set it defaults to anychart.graphics.vector.Anchor.CENTER.
Left illustration shows scaling with the default anchor.
Right illustration shows scaling with the anchor set.
Scaling center is marked with red, initial state is marked with gray.
Left illustration shows scaling with the default anchor.
.scaleByAnchor(0.5, 0.5)Right illustration shows scaling with the anchor set.
.scaleByAnchor(0.5, 0.5, anychart.graphics.vector.Anchor.RIGHT_TOP)Scaling center is marked with red, initial state is marked with gray.
Params:
| Name | Type | Description |
|---|---|---|
| sx | number | X scaling factor. |
| sy | number | Y scaling factor. |
| anchor | anychart.graphics.vector.Anchor | string | Scaling anchor point. |
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.Try it:
setPosition
Sets top left corner of a shape (transformation taken into account) in the coordinate system of the parent.
Detailed description
Note: See illustration at anychart.graphics.vector.Element#translate, the only difference
between anychart.graphics.vector.Element#translate and this method is the fact that
that this method resets the current transformation, and anychart.graphics.vector.Element#translate adds movement
to the existing transformation.
Params:
| Name | Type | Description |
|---|---|---|
| x | number | X coordinate. |
| y | number | Y coordinate. |
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.Try it:
setRotation
Rotates a shape around the given point.
Detailed description
Note: See illustration at anychart.graphics.vector.Element#rotate, the only difference
between anychart.graphics.vector.Element#rotate and this method is the fact
that this method resets the current transformation, and anychart.graphics.vector.Element#rotate adds rotation
to the existing transformation.
Params:
| Name | Type | Description |
|---|---|---|
| degrees | number | Rotation angle in degrees. |
| cx | number | Rotation point X. |
| cy | number | Rotation point Y. |
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.Try it:
setRotationByAnchor
Rotates a shape around the given anchor.
Detailed description
Note: See illustration at anychart.graphics.vector.Element#rotateByAnchor, the only difference
between anychart.graphics.vector.Element#rotateByAnchor and this method is the fact
that this method resets the current transformation, and anychart.graphics.vector.Element#rotate adds rotation
to the existing transformation.
Params:
| Name | Type | Description |
|---|---|---|
| degrees | number | Rotation angle in degrees. |
| anchor | anychart.graphics.vector.Anchor | string | Rotation anchor. |
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.Try it:
setTransformationMatrix
Sets the transformation matrix.
Detailed description
Note: See illustration at anychart.graphics.vector.Element#appendTransformationMatrix,
the difference between anychart.graphics.vector.Element#appendTransformationMatrix and this method
is that anychart.graphics.vector.Element#appendTransformationMatrix combined transformation with
the current, and this method resets the current.
Params:
| Name | Type | Description |
|---|---|---|
| m00 | number | Scale X. |
| m10 | number | Shear Y. |
| m01 | number | Shear X. |
| m11 | number | Scale Y. |
| m02 | number | Translate X. |
| m12 | number | Translate Y. |
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.Try it:
stroke
Sets a stroke using one parameter.
Detailed description
Available options:
- As '[thickness ]color[ opacity]' formatted string:
- 'color' - https://www.w3schools.com/html/html_colors.asp.
- 'thickness color' - like a css border, e.g. '3 red' or '3px red'
- 'color opacity' - as a fill string, e.g. '#fff 0.5'
- 'thickness color opacity' - as a complex string, e.g. '3px #00ff00 0.5'
- anychart.graphics.vector.Stroke object
- Array of anychart.graphics.vector.GradientKey keys
- null resets current stroke.
Params:
| Name | Type | Description |
|---|---|---|
| settings | anychart.graphics.vector.Stroke | anychart.graphics.vector.ColoredFill | string | null | Object | Stroke as '[thickness ]color[ opacity]'. |
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.Sets stroke settings using several parameter.
Detailed description
Note: When stroke properties are set both by complex stroke object properties and by stroke() method params,
object properties have more priority. E.g. setting shape.stroke('10 red', 5); (or shape.stroke({color: 'red',
thickness: 10}, 5); will result a red stroke with thickness 10px.
Params:
| Name | Type | Description |
|---|---|---|
| color | anychart.graphics.vector.Stroke | anychart.graphics.vector.ColoredFill | string | Stroke style, as described above. |
| thickness | number | Line thickness. Defaults to 1. |
| dashpattern | string | Controls the pattern of dashes and gaps used to stroke paths. Dash array contains a list of white space separated lengths and percentages that specify the lengths of alternating dashes and gaps. If an odd number of values is provided, then the list of values is repeated to yield an even number of values. Thus, stroke dashpattern: '5 3 2' is equivalent to dashpattern: '5 3 2 5 3 2'. |
| lineJoin | string | anychart.graphics.vector.StrokeLineJoin | Line join style. |
| lineCap | string | anychart.graphics.vector.StrokeLineCap | Line cap style. |
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.Try it:
strokeThickness
Sets a stroke thickness.
Params:
| Name | Type | Description |
|---|---|---|
| thickness | number | Thickness value. |
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.Try it:
title
Getter for the element title value.
Returns:
string | null | undefined - The element title value.Try it:
Setter for the element title value.
Params:
| Name | Type | Description |
|---|---|---|
| value | string | null | Value to set. |
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.Try it:
translate
Moves a shape taking an account the transformation.
Detailed description
Movement happens in a shape coordinate system (not the coordinate system of the parent).
Illustration shows a shape movement when
Illustration shows a shape movement when
.translate(20, 10) is invoked several times.Params:
| Name | Type | Description |
|---|---|---|
| tx | number | X movement amount. |
| ty | number | Y movement amount. |
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.Try it:
unlisten
Removes an event listener which was added with listen() or listenOnce().
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| type | string | The event type id. | |
| listener | function(e:Object):boolean|undefined | Callback method. | |
| useCapture | boolean | false | Whether to fire in capture phase. Learn more about capturing https://javascript.info/bubbling-and-capturing |
| listenerScope | Object | Object in whose scope to call the listener. |
Returns:
boolean - Whether any listener was removed.Try it:
visible
Hides or shows an element.
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| isVisible | boolean | true | Visibility flag. |
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.Try it:
zIndex
Sets the element's zIndex.
Params:
| Name | Type | Description |
|---|---|---|
| value | number | Z-index to set. |
Returns:
anychart.graphics.vector.Path - Self instance for method chaining.Try it:
