class anychart.core.resource.Logo Improve this Doc
Extends: anychart.core.ui.Background
Resource Chart Logo element.
Methods Overview
| Specific settings | |
| cornerType() | Corner type. |
| corners() | Corner radius. |
| overlay() | Overlay element. |
| Coloring | |
| bottomStroke() | Bottom stroke settings. |
| fill() | Fill settings. |
| leftStroke() | Left stroke settings. |
| rightStroke() | Right stroke settings. |
| stroke() | Stroke settings. |
| topStroke() | Top stroke settings. |
| Content Text Settings | |
| disablePointerEvents() | Pointer events settings. |
| Interactivity | |
| enabled() | Element state (enabled or disabled). |
| Size and Position | |
| bottom() | Bottom bound settings. |
| bounds() | Bounds settings. |
| getPixelBounds() | Returns pixel bounds. |
| height() | Height settings. |
| left() | Left bound settings. |
| maxHeight() | Maximum height. |
| maxWidth() | Maximum width. |
| minHeight() | Minimum height. |
| minWidth() | Minimum width. |
| right() | Right bound settings. |
| top() | Top bound settings. |
| width() | Width settings. |
| zIndex() | Z-index of the element. |
| Miscellaneous | |
| container() | Container for the elements. |
| parentBounds() | Getter for the parent bounds. |
Methods Description
bottom
Getter for element bottom bound settings.
Returns:
number | string | undefined - Element's bottom bound setting.Setter for element bottom bound settings.
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| bottom | number | string | null | null | Bottom bound settings for the element. |
Returns:
anychart.core.resource.Logo - Returns self for method chaining.Try it:
bottomStroke
Getter for the bottom stroke.
Returns:
anychart.graphics.vector.Stroke - Returns bottom stroke. See listing
var bottomStroke = logo.bottomStroke();
Setter for bottom stroke settings using one parameter.
Detailed description
Accepts:
- String formatted as '[thickness ]color[ opacity]':
- 'color' - https://www.w3schools.com/html/html_colors.asp.
- 'thickness color' - like a css border, e.g. '3 red' or '3px red'
- 'color opacity' - as a fill string, e.g. '#fff 0.5'
- 'thickness color opacity' - as a complex string, e.g. '3px #00ff00 0.5'
- anychart.graphics.vector.Stroke object
- anychart.graphics.vector.GradientKey keys array
- null resets current stroke settings
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| color | anychart.graphics.vector.Stroke | anychart.graphics.vector.ColoredFill | string | null | Object | 'none' | Stroke formatted as '[thickness ]color[ opacity]'. |
Returns:
anychart.core.resource.Logo - Self instance for method chaining.Try it:
Setter for bottom stroke settings.
Detailed description
Note: When stroke properties are set both by complex stroke object properties and by stroke() method params,
object properties have priority. E.g. setting shape.stroke('10 red', 5); (or shape.stroke({color: 'red',
thickness: 10}, 5); will result in a red stroke with thickness 10px.
Params:
| Name | Type | Description |
|---|---|---|
| color | anychart.graphics.vector.Stroke | anychart.graphics.vector.ColoredFill | string | Stroke settings. |
| thickness | number | Line thickness. Defaults to 1 of not set. |
| dashpattern | string | Controls the pattern of dashes and gaps used to stroke paths. Dash array contains a list of white space separated lengths and percentages that specify the lengths of alternating dashes and gaps. If an odd number of values is provided, then the list of values is repeated to yield an even number of values. Thus, stroke dashpattern: '5 3 2' is equivalent to dashpattern: '5 3 2 5 3 2'. |
| lineJoin | string | anychart.graphics.vector.StrokeLineJoin | Line join style. |
| lineCap | string | anychart.graphics.vector.StrokeLineCap | Line cap style. |
Returns:
anychart.core.resource.Logo - Self instance for method chaining.Try it:
bounds
Getter for element bounds settings.
Returns:
anychart.core.utils.Bounds - Bounds of the element.Setter for bounds of the element using one parameter.
Params:
| Name | Type | Description |
|---|---|---|
| bounds | anychart.utils.RectObj | anychart.math.Rect | anychart.core.utils.Bounds | Bounds of element. |
Returns:
anychart.core.resource.Logo - Self instance for method chaining.Try it:
Setter for element bounds settings.
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| x | number | string | null | X-coordinate. |
| y | number | string | null | Y-coordinate. |
| width | number | string | null | Width. |
| height | number | string | null | Height. |
Returns:
anychart.core.resource.Logo - Self instance for method chaining.Try it:
container
Getter for the container.
Returns:
anychart.graphics.vector.Layer | anychart.graphics.vector.Stage - An instance of the class for method chaining.Setter for the container.
Params:
| Name | Type | Description |
|---|---|---|
| element | anychart.graphics.vector.Layer | anychart.graphics.vector.Stage | string | Element | The value to set. |
Returns:
anychart.core.resource.Logo - Self instance for method chaining.cornerType
Getter for the corner type.
Returns:
anychart.enums.BackgroundCornersType | string - Corners type.Try it:
Setter for the corner type.
Detailed description
Note: Set corner radius anychart.core.ui.Background#corners to display a corners shape.
If a radius set to 0, no effect will be applied.
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| type | anychart.enums.BackgroundCornersType | string | 'round' | Value to set. |
Returns:
anychart.core.resource.Logo - Self instance for method chaining.Try it:
corners
Setter for the corner radius by one value.
Detailed description
Note: If array has less than 4 elements(or string provide less than 4 values),
the first value is set for all four corners.
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| corners | number | string | Array.<number> | 0 | Value to set. |
Returns:
anychart.core.resource.Logo - Self instance for method chaining.Setter for the corner radius by each value.
Params:
| Name | Type | Description |
|---|---|---|
| topLeft | number | string | Top left corner value. |
| topRight | number | string | Top right corner value. |
| bottomRight | number | string | Bottom left corner value. |
| bottomLeft | number | string | Bottom right corner value. |
Returns:
anychart.core.resource.Logo - Self instance for method chaining.Try it:
disablePointerEvents
Getter for the pointer events settings.
Returns:
boolean - The pointer events settings. See listing
var logo = chart.logo(); var disablePointerEvents = logo.disablePointerEvents();
Setter for the pointer events setting.
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| enabled | boolean | false | Value to set. |
Returns:
anychart.core.resource.Logo - Self instance for method chaining.enabled
Getter for the element state (enabled or disabled).
Returns:
boolean - Element state. See listing
var enabled = background.enabled();
Setter for the element enabled state.
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| enabled | boolean | true | Enabled state to set. |
Returns:
anychart.core.resource.Logo - Self instance for method chaining. Example.
if (!element.enabled()) element.enabled(true);
Try it:
fill
Getter for the background fill.
Returns:
anychart.graphics.vector.Fill - Fill settings (empty fill is always 'none').Try it:
Setter for fill settings using an object, an array or a string.
Accepts: or a color as a string, along with opacity, if needed, format is "Color Opacity", e.g. "red 0.5".
Accepts: or a color as a string, along with opacity, if needed, format is "Color Opacity", e.g. "red 0.5".
Params:
| Name | Type | Description |
|---|---|---|
| color | anychart.graphics.vector.Fill | Array.<(anychart.graphics.vector.GradientKey|string)> | Fill as an object, an array or a string. |
Returns:
anychart.core.resource.Logo - Self instance for method chaining.Fill as a color with opacity.
Detailed description
Note: If color is set as a string (e.g. 'red .5') it has a priority over opt_opacity, which
means: fill set like this rect.fill('red 0.3', 0.7) will have 0.3 opacity.
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| color | string | "#fff" | Fill as a string. |
| opacity | number | Fill opacity. |
Returns:
anychart.core.resource.Logo - Self instance for method chaining.Try it:
Linear gradient fill.
Detailed description
There are three modes:

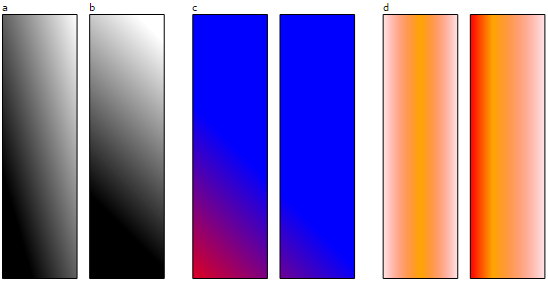

Description: a) ObjectBoundingBox no angle preservation.
b) ObjectBoundingBox preserving an angle.
c) UserSpaceOnUse.
d) Three step gradients.
- ObjectBoundingBox preserving an angle
- ObjectBoundingBox no angle preservation
- UserSpaceOnUse
Modes:
ObjectBoundingBox preserving an angle
If boolean is passed it says how gradient behaves, specificaly
how gradient line angle behaves. If true - it is ObjectBoundingBox
with angle preservation. If angle is preserved, in any shape angle looks as one expects it to see.
Note: By default gradient vector for any shape, which sides are not in 1:1 proportions, will not
look as expected, because browser transforms this angle.
ObjectBoundingBox no angle preservation
If false is passed - that's ObjectBoundingBox no angle preservation. In this case default
behaviour comes up - gradient vector is calculated for a shape with 1:1 side proportions.
UserSpaceOnUse
If anychart.graphics.math.Rect is passed - that'sUserSpaceOnUse mode.
In this mode gradient gets its own size and coordinates. Shapes with such gradient will be colored
only in those parts, which are covered by this custom gradient. Read more about this mode at
gradientUnits. Angle is always preserved in this mode.
Description: a) ObjectBoundingBox no angle preservation.
b) ObjectBoundingBox preserving an angle.
c) UserSpaceOnUse.
d) Three step gradients.
Params:
| Name | Type | Description |
|---|---|---|
| keys | Array.<(anychart.graphics.vector.GradientKey|string)> | Gradient keys. |
| angle | number | Gradient angle. |
| mode | boolean | anychart.graphics.vector.Rect | Object | Gradient mode. |
| opacity | number | Gradient opacity. |
Returns:
anychart.core.resource.Logo - Self instance for method chaining.Try it:
Radial gradient fill.
Params:
| Name | Type | Description |
|---|---|---|
| keys | Array.<(anychart.graphics.vector.GradientKey|string)> | Color-stop gradient keys. |
| cx | number | X ratio of center radial gradient. |
| cy | number | Y ratio of center radial gradient. |
| mode | anychart.graphics.math.Rect | If defined then userSpaceOnUse mode, else objectBoundingBox. |
| opacity | number | Opacity of the gradient. |
| fx | number | X ratio of focal point. |
| fy | number | Y ratio of focal point. |
Returns:
anychart.core.resource.Logo - Self instance for method chaining.Try it:
getPixelBounds
Returns pixel bounds of the element due to parent bounds and self bounds settings.
Returns:
anychart.math.Rect - Pixel bounds of the element.height
Getter for element height settings.
Returns:
number | string | undefined - Element's height setting.Setter for element height setting.
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| height | number | string | null | null | Height settings for the element. |
Returns:
anychart.core.resource.Logo - Returns self for method chaining.Try it:
left
Getter for element left bound settings.
Returns:
number | string | undefined - Element's left bound setting.Setter for element left bound settings.
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| left | number | string | null | null | Left bound setting for the element. |
Returns:
anychart.core.resource.Logo - Returns self for method chaining.Try it:
leftStroke
Getter for the left stroke.
Returns:
anychart.graphics.vector.Stroke - Returns left stroke. See listing
var leftStroke = logo.leftStroke();
Setter for left stroke settings using one parameter.
Detailed description
Accepts:
- String formatted as '[thickness ]color[ opacity]':
- 'color' - https://www.w3schools.com/html/html_colors.asp.
- 'thickness color' - like a css border, e.g. '3 red' or '3px red'
- 'color opacity' - as a fill string, e.g. '#fff 0.5'
- 'thickness color opacity' - as a complex string, e.g. '3px #00ff00 0.5'
- anychart.graphics.vector.Stroke object
- anychart.graphics.vector.GradientKey keys array
- null resets current stroke settings
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| color | anychart.graphics.vector.Stroke | anychart.graphics.vector.ColoredFill | string | null | Object | 'none' | Stroke formatted as '[thickness ]color[ opacity]'. |
Returns:
anychart.core.resource.Logo - Self instance for method chaining.Try it:
Setter for left stroke settings.
Detailed description
Note: When stroke properties are set both by complex stroke object properties and by stroke() method params,
object properties have priority. E.g. setting shape.stroke('10 red', 5); (or shape.stroke({color: 'red',
thickness: 10}, 5); will result in a red stroke with thickness 10px.
Params:
| Name | Type | Description |
|---|---|---|
| color | anychart.graphics.vector.Stroke | anychart.graphics.vector.ColoredFill | string | Stroke settings. |
| thickness | number | Line thickness. Defaults to 1 of not set. |
| dashpattern | string | Controls the pattern of dashes and gaps used to stroke paths. Dash array contains a list of white space separated lengths and percentages that specify the lengths of alternating dashes and gaps. If an odd number of values is provided, then the list of values is repeated to yield an even number of values. Thus, stroke dashpattern: '5 3 2' is equivalent to dashpattern: '5 3 2 5 3 2'. |
| lineJoin | string | anychart.graphics.vector.StrokeLineJoin | Line join style. |
| lineCap | string | anychart.graphics.vector.StrokeLineCap | Line cap style. |
Returns:
anychart.core.resource.Logo - Self instance for method chaining.Try it:
maxHeight
Getter for the maximum height.
Returns:
number | string | null - Element's maximum height.Setter for the maximum height.
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| height | number | string | null | null | Maximum height to set. |
Returns:
anychart.core.resource.Logo - Self instance for method chaining.Try it:
maxWidth
Getter for the maximum width.
Returns:
number | string | null - Element's maximum width.Setter for the maximum width.
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| width | number | string | null | null | Maximum width to set. |
Returns:
anychart.core.resource.Logo - Self instance for method chaining.Try it:
minHeight
Getter for the minimum height.
Returns:
number | string | null - Element's minimum height.Setter for the minimum height.
Detailed description
The method sets a minimum height of elements, that will be to remain after a resize of element.
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| height | number | string | null | null | Minimum height to set. |
Returns:
anychart.core.resource.Logo - Self instance for method chaining.Try it:
minWidth
Getter for the minimum width.
Returns:
number | string | null - Element's minimum width.Setter for the minimum width.
Detailed description
The method sets a minimum width of elements, that will be to remain after a resize of element.
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| width | number | string | null | null | Minimum width to set. |
Returns:
anychart.core.resource.Logo - Self instance for method chaining.Try it:
overlay
Getter for the overlay element.
Returns:
anychart.core.gantt.Overlay - The overlay element See listing
var element = logo.overlay();
Setter for the overlay element.
Params:
| Name | Type | Description |
|---|---|---|
| settings | Object | null | boolean | Overlay settings to set. |
Returns:
anychart.core.resource.Logo - Self instance for method chaining.Try it:
parentBounds
Getter for the parent bounds.
Bounds that would be used in case of percent size calculations. Expects pixel values only.
Bounds that would be used in case of percent size calculations. Expects pixel values only.
Returns:
anychart.math.Rect - The parent bounds of the element.Setter for the parent bounds using single value.
Bounds that would be used in case of percent size calculations. Expects pixel values only.
Bounds that would be used in case of percent size calculations. Expects pixel values only.
Params:
| Name | Type | Description |
|---|---|---|
| bounds | anychart.math.Rect | Object | number | null | Bounds to set. |
Returns:
anychart.core.resource.Logo - Self instance for method chaining.Setter for the parent bounds using several values.
Bounds that would be used in case of percent size calculations. Expects pixel values only.
Bounds that would be used in case of percent size calculations. Expects pixel values only.
Params:
| Name | Type | Description |
|---|---|---|
| left | number | Left space. |
| top | number | Top space. |
| width | number | Element width. |
| height | number | Element height. |
Returns:
anychart.core.resource.Logo - Self instance for method chaining.right
Getter for element right bound settings.
Returns:
number | string | undefined - Element's right bound setting.Setter for element right bound setting.
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| right | number | string | null | null | Right bound setting for the element. |
Returns:
anychart.core.resource.Logo - Returns self for method chaining.Try it:
rightStroke
Getter for the right stroke.
Returns:
anychart.graphics.vector.Stroke - Returns right stroke. See listing
var rightStroke = logo.rightStroke();
Setter for right stroke settings using one parameter.
Detailed description
Accepts:
- String formatted as '[thickness ]color[ opacity]':
- 'color' - https://www.w3schools.com/html/html_colors.asp.
- 'thickness color' - like a css border, e.g. '3 red' or '3px red'
- 'color opacity' - as a fill string, e.g. '#fff 0.5'
- 'thickness color opacity' - as a complex string, e.g. '3px #00ff00 0.5'
- anychart.graphics.vector.Stroke object
- anychart.graphics.vector.GradientKey keys array
- null resets current stroke settings
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| color | anychart.graphics.vector.Stroke | anychart.graphics.vector.ColoredFill | string | null | Object | 'none' | Stroke formatted as '[thickness ]color[ opacity]'. |
Returns:
anychart.core.resource.Logo - Self instance for method chaining.Try it:
Setter for right stroke settings.
Detailed description
Note: When stroke properties are set both by complex stroke object properties and by stroke() method params,
object properties have priority. E.g. setting shape.stroke('10 red', 5); (or shape.stroke({color: 'red',
thickness: 10}, 5); will result in a red stroke with thickness 10px.
Params:
| Name | Type | Description |
|---|---|---|
| color | anychart.graphics.vector.Stroke | anychart.graphics.vector.ColoredFill | string | Stroke settings. |
| thickness | number | Line thickness. Defaults to 1 of not set. |
| dashpattern | string | Controls the pattern of dashes and gaps used to stroke paths. Dash array contains a list of white space separated lengths and percentages that specify the lengths of alternating dashes and gaps. If an odd number of values is provided, then the list of values is repeated to yield an even number of values. Thus, stroke dashpattern: '5 3 2' is equivalent to dashpattern: '5 3 2 5 3 2'. |
| lineJoin | string | anychart.graphics.vector.StrokeLineJoin | Line join style. |
| lineCap | string | anychart.graphics.vector.StrokeLineCap | Line cap style. |
Returns:
anychart.core.resource.Logo - Self instance for method chaining.Try it:
stroke
Setter for stroke settings using one parameter.
Detailed description
Accepts:
- String formatted as '[thickness ]color[ opacity]':
- 'color' - https://www.w3schools.com/html/html_colors.asp.
- 'thickness color' - like a css border, e.g. '3 red' or '3px red'
- 'color opacity' - as a fill string, e.g. '#fff 0.5'
- 'thickness color opacity' - as a complex string, e.g. '3px #00ff00 0.5'
- anychart.graphics.vector.Stroke object
- anychart.graphics.vector.GradientKey keys array
- null resets current stroke settings
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| color | anychart.graphics.vector.Stroke | anychart.graphics.vector.ColoredFill | string | null | Object | 'none' | Stroke formatted as '[thickness ]color[ opacity]'. |
Returns:
anychart.core.resource.Logo - Self instance for method chaining.Setter for stroke settings.
Detailed description
Note: When stroke properties are set both by complex stroke object properties and by stroke() method params,
object properties have priority. E.g. setting shape.stroke('10 red', 5); (or shape.stroke({color: 'red',
thickness: 10}, 5); will result in a red stroke with thickness 10px.
Params:
| Name | Type | Description |
|---|---|---|
| color | anychart.graphics.vector.Stroke | anychart.graphics.vector.ColoredFill | string | Stroke settings. |
| thickness | number | Line thickness. Defaults to 1 of not set. |
| dashpattern | string | Controls the pattern of dashes and gaps used to stroke paths. Dash array contains a list of white space separated lengths and percentages that specify the lengths of alternating dashes and gaps. If an odd number of values is provided, then the list of values is repeated to yield an even number of values. Thus, stroke dashpattern: '5 3 2' is equivalent to dashpattern: '5 3 2 5 3 2'. |
| lineJoin | string | anychart.graphics.vector.StrokeLineJoin | Line join style. |
| lineCap | string | anychart.graphics.vector.StrokeLineCap | Line cap style. |
Returns:
anychart.core.resource.Logo - Self instance for method chaining.Try it:
top
Getter for element top bound settings.
Returns:
number | string | undefined - Element's top bound setting.Setter for element top bound settings.
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| top | number | string | null | null | Top bound setting for the element. |
Returns:
anychart.core.resource.Logo - Returns self for method chaining.Try it:
topStroke
Getter for the top stroke.
Returns:
anychart.graphics.vector.Stroke - Returns top stroke. See listing
var topStroke = logo.topStroke();
Setter for top stroke settings using one parameter.
Detailed description
Accepts:
- String formatted as '[thickness ]color[ opacity]':
- 'color' - https://www.w3schools.com/html/html_colors.asp.
- 'thickness color' - like a css border, e.g. '3 red' or '3px red'
- 'color opacity' - as a fill string, e.g. '#fff 0.5'
- 'thickness color opacity' - as a complex string, e.g. '3px #00ff00 0.5'
- anychart.graphics.vector.Stroke object
- anychart.graphics.vector.GradientKey keys array
- null resets current stroke settings
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| color | anychart.graphics.vector.Stroke | anychart.graphics.vector.ColoredFill | string | null | Object | 'none' | Stroke formatted as '[thickness ]color[ opacity]'. |
Returns:
anychart.core.resource.Logo - Self instance for method chaining.Try it:
Setter for top stroke settings.
Detailed description
Note: When stroke properties are set both by complex stroke object properties and by stroke() method params,
object properties have priority. E.g. setting shape.stroke('10 red', 5); (or shape.stroke({color: 'red',
thickness: 10}, 5); will result in a red stroke with thickness 10px.
Params:
| Name | Type | Description |
|---|---|---|
| color | anychart.graphics.vector.Stroke | anychart.graphics.vector.ColoredFill | string | Stroke settings. |
| thickness | number | Line thickness. Defaults to 1 of not set. |
| dashpattern | string | Controls the pattern of dashes and gaps used to stroke paths. Dash array contains a list of white space separated lengths and percentages that specify the lengths of alternating dashes and gaps. If an odd number of values is provided, then the list of values is repeated to yield an even number of values. Thus, stroke dashpattern: '5 3 2' is equivalent to dashpattern: '5 3 2 5 3 2'. |
| lineJoin | string | anychart.graphics.vector.StrokeLineJoin | Line join style. |
| lineCap | string | anychart.graphics.vector.StrokeLineCap | Line cap style. |
Returns:
anychart.core.resource.Logo - Self instance for method chaining.Try it:
width
Getter for element width settings.
Returns:
number | string | undefined - Element's width setting.Setter for element width setting.
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| width | number | string | null | null | Width settings for the element. |
Returns:
anychart.core.resource.Logo - Returns self for method chaining.Try it:
zIndex
Setter for the Z-index of the element.
Detailed description
The bigger the index - the higher the element position is.
Params:
| Name | Type | Default | Description |
|---|---|---|---|
| zIndex | number | 0 | Value to set. |
Returns:
anychart.core.resource.Logo - Self instance for method chaining.Try it:
