class anychart.core.Chart Improve this Doc

Extends: anychart.core.VisualBaseWithBounds

Base class for all charts, contains the margins, the background and the title.

Methods Overview

Chart Coloring
animation()Animation settings
background()Background settings.
Chart Controls
label()Label settings.
title()Title settings.
Interactivity
tooltip()Tooltip settings.
Size and Position
margin()Margin settings.
padding()Padding settings.
XML/JSON
toJson()Return chart configuration as JSON object or string.
toXml()Return chart configuration as XML string or XMLNode.
Miscellaneous
container()Getter for the element current container.
draw()Drawing of the chart.

Methods Description

animation

Getter for the current animation setting.

Returns:

anychart.core.utils.Animation - Returns true if the animation is enabled.

Try it:

Setter for the animation setting by one value.

Params:

Name Type Default Description
value boolean | Object
false
Whether to enable animation.

Returns:

anychart.core.Chart - Self instance for method chaining.
Setter for the animation setting.

Params:

Name Type Default Description
enabled boolean
false
Whether to enable animation.
duration number
1000
Duration in milliseconds.

Returns:

anychart.core.Chart - Self instance for method chaining.

Try it:

background

Getter for the current chart background.

Returns:

anychart.core.ui.Background - The current chart background.

Try it:

Setter for the chart background.

Params:

Name Type Default Description
value Object
{enabled: true, fill: "#fff", stroke: 'none', zIndex: 1}
Background object to set.

Returns:

anychart.core.Chart - Self instance for method chaining.

Try it:

container

Getter for the element current container.

Returns:

anychart.graphics.vector.ILayer - The current container.
Setter for the element container.

Params:

Name Type Description
value anychart.graphics.vector.ILayer | string | Element The value to set.

Returns:

anychart.core.Chart - Self instance for method chaining.
Example
// string
 element.container('containerIdentifier');
// DOM-element
 var domElement = document.getElementById('containerIdentifier');
 element.container(domElement);
// Framework-element
 var fwElement = anychart.ui.title();
 element.container( fwElement.container() );

Try it:

draw

Starts the rendering of the chart into the container.

Returns:

anychart.core.Chart - Self instance for method chaining.

label

Getter for chart label.

Params:

Name Type Default Description
index string | number
0
Index of instance.

Returns:

anychart.core.ui.Label - An instance of class for method chaining.

Try it:

Setter for chart label.

Params:

Name Type Default Description
value null | boolean | Object | string
false
Chart label instance to add by index 0.

Returns:

anychart.core.Chart - Self instance for method chaining.
Setter for chart label.

Params:

Name Type Default Description
index string | number
Label index.
value null | boolean | Object | string
false
Chart label settings.

Returns:

anychart.core.Chart - Self instance for method chaining.

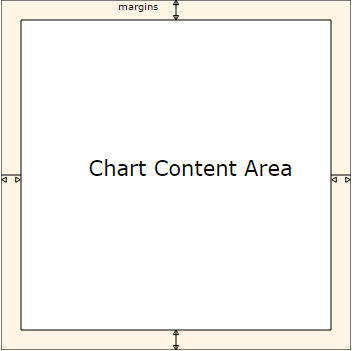

margin

Getter for the current chart margin.

Returns:

anychart.core.utils.Margin - The current chart margin.
Setter for the chart margin in pixels using a single complex object.

Params:

Name Type Default Description
value Array.<(number|string)> | Object
{top: 0, right: 0, bottom: 0, left: 0}
Value to set.

Returns:

anychart.core.Chart - Self instance for method chaining.
Example.
// all margins 15px
chart.margin(15);
// all margins 15px
chart.margin("15px");
// top and bottom 5px, right and left 15px
chart.margin(anychart.utils.space(5, 15));

Try it:

Setter for the chart margin in pixels using several simple values.

Params:

Name Type Default Description
value1 string | number
0
Top or top-bottom space.
value2 string | number
0
Right or right-left space.
value3 string | number
0
Bottom space.
value4 string | number
0
Left space.

Returns:

anychart.core.Chart - Self instance for method chaining.
Example.
// 1) all 10px
chart.margin(10);
// 2) top and bottom 10px, left and right 15px
chart.margin(10, "15px");
// 3) top 10px, left and right 15px, bottom 5px
chart.margin(10, "15px", 5);
// 4) top 10px, right 15px, bottom 5px, left 12px
chart.margin(10, "15px", "5px", 12);

Try it:

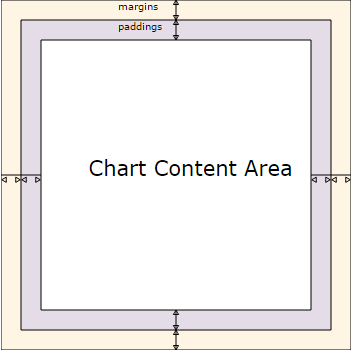

padding

Getter for the current chart padding.

Returns:

anychart.core.utils.Padding - Current chart padding.
Setter for the chart paddings in pixels using a single value.

Params:

Name Type Default Description
value Array.<(number|string)> | Object
{top: 0, right: 0, bottom: 0, left: 0}
Value to set.

Returns:

anychart.core.Chart - Self instance for method chaining.
Example.
chart.padding([5, 15]);
or
chart.padding({left: 10, top: 20, bottom: 30, right: "40%"}});

Try it:

Setter for the chart paddings in pixels using several numbers.

Params:

Name Type Default Description
value1 string | number
0
Top or top-bottom space.
value2 string | number
0
Right or right-left space.
value3 string | number
0
Bottom space.
value4 string | number
0
Left space.

Returns:

anychart.core.Chart - Self instance for method chaining.
Example.
// 1) all 10px
chart.padding(10);
// 2) top and bottom 10px, left and right 15px
chart.padding(10, "15px");
// 3) top 10px, left and right 15px, bottom 5px
chart.padding(10, "15px", 5);
// 4) top 10px, right 15%, bottom 5px, left 12px
chart.padding(10, "15%", "5px", 12);

Try it:

title

Getter for chart title.

Returns:

anychart.core.ui.Title - The current chart title.

Try it:

Setter for the chart title.

Params:

Name Type Default Description
value null | boolean | Object | string
false
Chart title text or title instance for copy settings from.

Returns:

anychart.core.Chart - Self instance for method chaining.

toJson

Return chart configuration as JSON object or string.

Params:

Name Type Description
stringify object | string Return as JSON as string.

Returns:

* - Chart JSON.

Try it:

toXml

Return chart configuration as XML string or XMLNode.

Params:

Name Type Description
asXmlNode boolean Return XML as XMLNode.

Returns:

string Node - Chart configuration.

Try it:

tooltip

Getter for current chart tooltip.

Returns:

anychart.core.ui.ChartTooltip anychart.core.ui.Tooltip - An instance of class for method chaining.
Example
var tooltipSettings = chart.tooltip();
Setter for chart tooltip.

Params:

Name Type Description
value Object | boolean | null

Returns:

anychart.core.Chart - Self instance for method chaining.
