class anychart.data.Traverser Improve this Doc

Tree data traverser.

Methods Overview

Data
advance()Advances traverser to the next item.
current()Gets current tree data item.
get()Gets current data item's data value by field specified.
getDepth()Gets depth of current data item.
meta()Meta value.
nodeYieldCondition()Decider function.
reset()Resets traverser to its zero state (before the first child).
set()Sets current item's value by key specified.
toArray()Turns current traverser to an array of tree data items.
traverseChildrenCondition()Decider function.

Methods Description

advance

Advances traverser to the next item.

Returns:

boolean - Returns True if moved to the next item, otherwise returns False.
Sample for method advance.
var rawdata = [
 {name: 1, children: [
   {name: 2, children: [
     {name: 3},
     {name: 4, children: [
       {name: 5}, {name: 6}
     ]}
   ]},
   {name: 7, children: [
     {name: 8}, {name: 9}
   ]}
 ]}
];
var tree = anychart.data.tree(rawdata, 'as-tree');
var traverser = tree.getTraverser();
while (traverser.advance()){
   //do something
 }

current

Gets current tree data item.

Returns:

anychart.data.Tree.DataItem | anychart.data.TreeView.DataItem | undefined - Current data item.

get

Gets current data item's data value by field specified.

Params:

NameTypeDescription
keystringKey of value to be got from current data item.

Returns:

* - Value.
Sample for method get.
var rawdata = [
 {name: 1, children: [
   {name: 2, children: [
     {name: 3},
     {name: 4, children: [
       {name: 5}, {name: 6}
     ]}
   ]},
   {name: 7, children: [
     {name: 8}, {name: 9}
   ]}
 ]}
];
var tree = anychart.data.tree(rawdata, 'as-tree');
var traverser = tree.getTraverser();
while (traverser.advance()){
   if (traverser.getDepth() > 2)
     console.log(traverser.get('name')); // return 5 and 6
 }

getDepth

Gets depth of current data item.

Returns:

number - Depth.
Sample for method getDepth.
var rawdata = [
 {name: 1, children: [
   {name: 2, children: [
     {name: 3},
     {name: 4, children: [
       {name: 5}, {name: 6}
     ]}
   ]},
   {name: 7, children: [
     {name: 8}, {name: 9}
   ]}
 ]}
];
var tree = anychart.data.tree(rawdata, 'as-tree');
var traverser = tree.getTraverser();
while (traverser.advance()){
   if (traverser.getDepth() > 2) // get depth
     console.log(traverser.get('name'));
 }

meta

Getter for a meta value.

Params:

NameTypeDescription
keystringKey.

Returns:

* - Value.
Setter for a meta value.

Params:

NameTypeDescription
keystringKey.
value*Value to set.

Returns:

* - Value or itself for method chaining.
Sample for method meta.
var rawdata = [
 {name: 1, children: [
   {name: 2, children: [
     {name: 3},
     {name: 4, children: [
       {name: 5}, {name: 6}
     ]}
   ]},
   {name: 7, children: [
     {name: 8}, {name: 9}
   ]}
 ]}
];
var tree = anychart.data.tree(rawdata, 'as-tree');
var traverser = tree.getTraverser();
var straightIndex = 0;
while (traverser.advance()){
   traverser.meta('index', straightIndex); // sets meta value for current tree data item.
   straightIndex++; // increments straight index.
 }

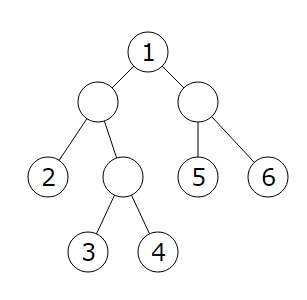

nodeYieldCondition

Getter for decider function.

Returns:

function - Returns decider function.
Setter for function that decides if data item must be returned while passage.

Params:

NameTypeDescription
conditionFunctionfunction(dataItem:anychart.data.Tree.DataItem|anychart.data.TreeView.DataItem):booleanCondition function to set.

Returns:

function | anychart.data.Traverser - Self instance for method chaining.

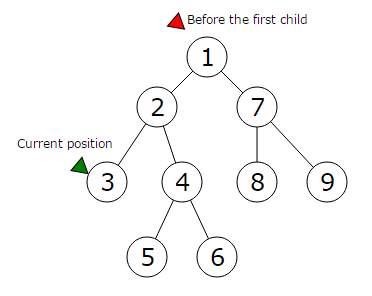

reset

Resets traverser to its zero state (before the first child).

Returns:

anychart.data.Traverser - Self instance for method chaining.

set

Sets current item's value by key specified.

Params:

NameTypeDescription
keystringKey.
value*Value to set.

Returns:

anychart.data.Traverser - Self instance for method chaining.

toArray

Turns current traverser to an array of tree data items.
Sample for method toArray.
var rawdata = [
{name: 1, children: [
    {name: 2, children: [
        {name: 3},
        {name: 4, children: [
            {name: 5},
            {name: 6}
        ]}
    ]},
    {name: 7, children: [
        {name: 8}
    ]}
]}
];
var treeData = anychart.data.tree(rawdata, anychart.enums.TreeFillingMethod|string.TREE);
var traverser = treeData.getTraverser();
var traverseChildrenCondition = function(item) {return item.numChildren() >= 2;};
traverser.traverseChildrenCondition(traverseChildrenCondition);
var toArrayArray = traverser.toArray(); // turns traverser to an array
for (var i = 0; i < toArrayArray.length; i++) {
       var item = toArrayArray[i];
       console.log(item.get('name'));
 }

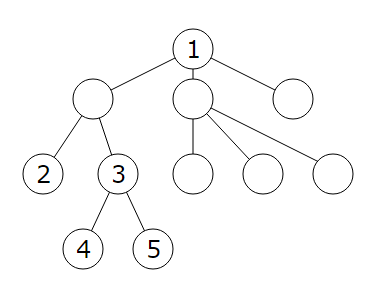

traverseChildrenCondition

Getter for decider function.

Returns:

function - Returns decider function.
Setter for the function that decides if we go through data item's children while passage.

Params:

NameTypeDescription
conditionFunctionfunction(dataItem:anychart.data.Tree.DataItem|anychart.data.TreeView.DataItem):booleanCondition function to set.

Returns:

function | anychart.data.Traverser - Self instance for method chaining.
