# class anychart.graphics.vector.Path Improve this Doc

Path class.

Path is sequence of segments of different type, it can be opened or closed.

To define the internal fill this rule is used EVEN-ODD.

Path always starts with anychart.graphics.vector.Path#moveTo command.

**Do not invoke constructor directly.** Use anychart.graphics.vector.Stage#path or
anychart.graphics.vector.Layer#path to create stage or layer bound path.

To create unbound path use anychart.graphics#path

See also:

anychart.graphics.vector.Stage#path

anychart.graphics.vector.Layer#path

anychart.graphics#path

## Methods Overview

Miscellaneous | |

arcTo() | Adds a command to the path that draws an arc of an ellipse. |

arcToAsCurves() | This method is similar to anychart.graphics.vector.Path#arcTo, but in this case the arc is approximated by Bezier curves. |

arcToByEndPoint() | Adds a command to the path that draws an arc of an ellipse. |

clear() | Resets all path operations. |

close() | Adds a command that closes the path by connecting the last point with the first straight line. |

curveTo() | Adds specified points to the path, drawing sequentially a cubic Bezier curve from the current point to the next. |

getCurrentPoint() | Returns the last coordinates added to the path. |

lineTo() | Adds specified points to the current path, drawing sequentially a straight line through the specified coordinates. |

moveTo() | Moves path cursor position to a specified coordinate. |

quadraticCurveTo() | Adds specified points to the path, drawing sequentially a quadratic Bezier curve from the current point to the next. |

## Methods Description

### arcTo

An ellipse with radius

**rx, ry**, starting from an angle

**fromAngle**, with an angular length

**extent**.

The positive direction is considered the direction from a positive direction of the X-axis to a positive direction of the Y-axis, that is clockwise.

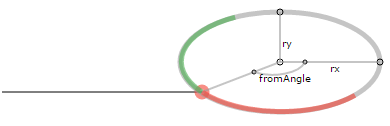

The black line marks the current path.

The red point is the point from which the arc is drawn.

According to the given parameters, an ellipse is plotted with radii

**rx**and

**ry**, and an angle

**fromAngle**, which defines the position of the ellipse against the red point.

Then an ellipse arc of a given angular length

**extend**is drawn (the arc is marked green if

**extend > 0**and red if

**extend < 0**).

**Params:**

Name | Type | Description |
---|---|---|

rx | number | The X-axis radius of the ellipse. |

ry | number | The Y-axis radius of the ellipse. |

fromAngle | number | The starting angle, measured in degrees in a clockwise direction. |

extent | number | The angular length of the arc. |

**Returns:**

**Try it:**

### arcToAsCurves

**Attention!**The method is recommended when transformations are used: using the ordinary anychart.graphics.vector.Path#arcTo and anychart.graphics.vector.Path#arcToByEndPoint methods with transformations leads to productivity loss.

java.awt.geom.ArcIterator algorithm adaptation

You can find an illustration of how the method works, and examples in the anychart.graphics.vector.Path#arcTo method description.

The only difference is that this method draws an arc using a set of curves.

**Params:**

Name | Type | Description |
---|---|---|

rx | number | The X-axis radius of the ellipse. |

ry | number | The Y-axis radius of the ellipse. |

fromAngle | number | The starting angle, measured in degrees in a clockwise direction. |

extent | number | The angular length of the arc. |

**Returns:**

### arcToByEndPoint

An arc of an ellipse with radius

**rx, ry**

**rx, ry**from the current point to a point

**x, y**.

The

**largeArc**and

**clockwiseArc**flags define which of the 4 possible arcs is drawn.

Read more at https://www.w3.org/TR/SVG/implnote.html#ArcImplementationNotes

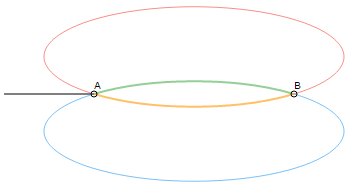

There are several ways to get from point

**A**a to point

**B**, given the same

**x, y, rx, ry**parameters. The way to get to point

**B**, is defined by the pair

**largeArc, clockwiseArc**:

**largeArc**– defines if the larger (red and blue) or the smaller (green and yellow) arc is drawn;**clockwiseArc**– defines if the arc is drawn clockwise (red and green) or counterclockwise (yellow and blue).

**Params:**

Name | Type | Description |
---|---|---|

x | number | The X-coordinate of the arc end. |

y | number | The Y-coordinate of the arc end. |

rx | number | The X-axis radius of the ellipse. |

ry | number | The Y-axis radius of the ellipse. |

largeArc | boolean | A flag allowing to draw either the smaller or the larger arc. |

clockwiseArc | boolean | A flag allowing to draw an arc either in a clockwise or in a counterclockwise direction. |

**Returns:**

**Try it:**

### clear

**Returns:**

**Try it:**

### close

Assume that some path has been being drawn. After calling the

**close**method, the current point

**B**will be connected with the beginning of the path (point

**A**) by a straight line (marked red).

**Returns:**

**Try it:**

### curveTo

Each curve is defined by 3 points (6 coordinates) – two control points and an endpoint.

The cursor is set to the point

**A**.

Then the curve goes to the point

**B**through the inflection points

**P1**and

**P2**.

Next the curve goes to the point

**C**through the inflection points

**P3**and

**P4**.

Inflection points can be placed anywhere, but there must be two of them.

**Params:**

Name | Type | Description |
---|---|---|

control1X | number | The first control point’s X-coordinate. |

control1Y | number | The first control point’s Y-coordinate. |

control2X | number | The second control point’s X-coordinate. |

control2Y | number | The second control point’s Y-coordinate. |

endX | number | The endpoint’s X-coordinate. |

endY | number | The endpoint’s Y-coordinate. |

var_args | number | The coordinates, defining curves, in sets of 6: first control points, then an endpoint (in the same order as the primary parameters). |

**Returns:**

### getCurrentPoint

**Returns:**

**Try it:**

### lineTo

The beginning is in the point

**A**(50, 50).

The first line is drawn from the beginning to the point

**B**(100, 100).

Then the path goes on to the point

**C**(50, 110).

From the point

**C**it goes to the point

**D**(50, 140)

and ends in the point

**E**(300, 140).

**Params:**

Name | Type | Description |
---|---|---|

x | number | A target point’s X-coordinate. |

y | number | A target point’s Y-coordinate. |

var_args | number | The target points’ coordinates: each odd parameter is interpreted as X and each even as Y. |

**Returns:**

### moveTo

Remember that if you call the

**moveTo**method a few times in a row, only the last call will be applied.

**Params:**

Name | Type | Description |
---|---|---|

x | number | The target point’s X-coordinate. |

y | number | The target point’s Y-coordinate. |

**Returns:**

**Try it:**

### quadraticCurveTo

The cursor is set to the point

**A**.

Then the curve goes to the point

**B**through the inflection point

**P1**.

Next the curve goes to the point

**C**through the inflection point

**P2**.

The inflection point can be placed anywhere, and there must be one such point.

**Params:**

Name | Type | Description |
---|---|---|

controlX | number | The control point’s X-coordinate. |

controlY | number | The control point’s Y-coordinate. |

endX | number | The endpoint’s X-coordinate. |

endY | number | The endpoint’s Y-coordinate. |

var_args | number | coordinates, defining curves, in sets of four: first the control point, then an endpoint (in the same order as the primary parameters). |

**Returns:**
