You are looking at an outdated 7.13.0 version of this document. Switch to the 8.4.0 version to see the up to date information.

class anychart.charts.Scatter Improve this Doc

Extends: anychart.core.SeparateChart

Scatter chart class.

Methods Overview

Specific settings
annotations()Creates annotations.
getType()Definition of the chart type.
globalToLocal()Converts the global coordinates to local coordinates.

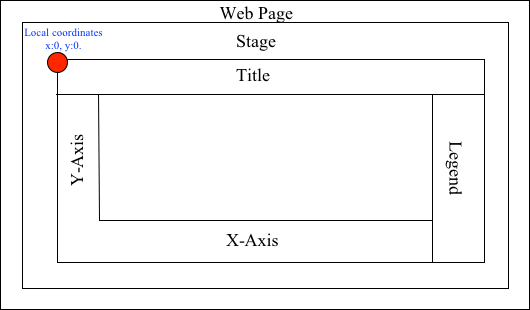

localToGlobal()Converts the local coordinates to global coordinates.
Axes and Scales
grid()Grid settings.
lineMarker()Line marker settings.
minorGrid()Minor grid settings.
rangeMarker()Range marker settings.
textMarker()Text marker settings.
xAxis()X-axis settings.
xScale()X-scale settings.
yAxis()Y-axis settings.
yScale()Y-scale settings.
Chart Coloring
animation()Animation settings
background()Background settings.
hatchFillPalette()Hatch fill palette settings.
markerPalette()Markers palette settings.
palette()Palette settings.
Chart Controls
contextMenu()Context menu settings.
credits()Credits settings
label()Label settings.
legend()Legend settings.
title()Title settings.
Data
getSelectedPoints()Getter for the selected points.
getStat()Getter for a statistical value by the key.
Events
listen()Adds an event listener.
listenOnce()Adds a single time event listener.
removeAllListeners()Removes all listeners.
unlisten()Removes the listener.
unlistenByKey()Removes the listener by the key.
Export
print()Prints all elements.
saveAsCsv()Saves chart data as CSV file.
saveAsJson()Saves chart config as JSON document.
saveAsXlsx()Saves chart data as Excel document.
saveAsXml()Saves chart config as XML document.
toCsv()Returns CSV string with series data.
Interactivity
crosshair()Crosshair settings
interactivity()Interactivity settings.
tooltip()Tooltip settings.
Series
bubble()Adds Bubble series.
getSeries()Gets series by index.
line()Adds Line series.
marker()Adds Marker series.
Size and Position
bottom()Bottom bound setting.
bounds()Bounds settings.
getPixelBounds()Returns pixel bounds.
getPlotBounds()Getter for the current data bounds of the chart.
height()Height setting.
left()Left bound setting.

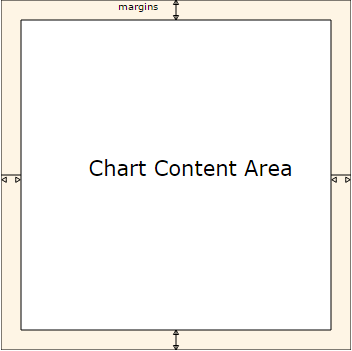

margin()Margin settings.
maxHeight()Maximum height.
maxWidth()Maximum width.
minHeight()Minimum height.
minWidth()Minimum width.

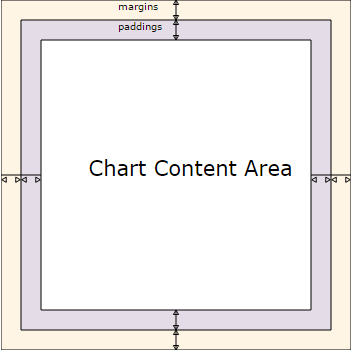

padding()Padding settings.
right()Right bound setting.
top()Top bound setting.
width()Width setting.
zIndex()Z-index of the element.
Specific Series Settings
addSeries()Add series to chart.
defaultSeriesType()Default series type.
getSeriesAt()Gets series by its index.
getSeriesCount()Returns series count.
maxBubbleSize()Maximum size for all bubbles
minBubbleSize()Minimum size for all bubbles
removeAllSeries()Removes all series from chart.
removeSeries()Removes one of series from chart by its id.
removeSeriesAt()Removes one of series from chart by its index.
XML/JSON
toJson()Return chart configuration as JSON object or string.
toXml()Return chart configuration as XML string or XMLNode.
Miscellaneous
container()Getter for the element's container.
draw()Drawing of the chart.
saveAsJpg()Saves the current chart as JPEG image.
saveAsPdf()Saves the current chart as PDF image.
saveAsPng()Saves the current chart as PNG image.
saveAsSvg()Saves the current chart as SVG image.
toSvg()Returns SVG string.

Methods Description

addSeries

Add series to chart.

Params:

NameTypeDescription
var_argsanychart.data.View | anychart.data.Set | ArrayChart series data.

Returns:

Array.<anychart.core.scatter.series.Base> - Array of created series.

animation

Getter for the current animation setting.

Returns:

anychart.core.utils.Animation - Returns true if the animation is enabled.
Setter for the animation setting by one value.

Params:

NameTypeDefaultDescription
valueboolean | Object
false
Whether to enable animation.

Returns:

anychart.charts.Scatter - Self instance for method chaining.
Setter for the animation settings using several parameters.

Params:

NameTypeDefaultDescription
enabledboolean
false
Whether to enable animation.
durationnumber
1000
Duration in milliseconds.

Returns:

anychart.charts.Scatter - Self instance for method chaining.

annotations

Getter for the annotations.

Returns:

anychart.core.annotations.PlotController - The plot annotations.
Setter for the annotations.

Params:

NameTypeDescription
annotationsListArrayAnnotations list to set.

Returns:

anychart.charts.Scatter - Self instance for method chaining

background

Getter for the current chart background.

Returns:

anychart.core.ui.Background - The current chart background.
Setter for the chart background.

Params:

NameTypeDefaultDescription
valueObject
{enabled: true, fill: "#fff", stroke: 'none', zIndex: 1}
Background object to set.

Returns:

anychart.charts.Scatter - Self instance for method chaining.

bottom

Getter for element bottom bound setting.

Returns:

number | string | undefined - Current element's bottom bound setting.
Sets element bottom bound setting.

Params:

NameTypeDefaultDescription
valuenumber | string | null
null
Bottom bound setting for the element.

Returns:

anychart.charts.Scatter - Returns self for method chaining.

bounds

Getter for the element bounds settings.

Returns:

anychart.core.utils.Bounds - Current bounds of the element.
Sets bounds of the element using one parameter.

Params:

NameTypeDescription
valueanychart.utils.RectObj | anychart.math.Rect | anychart.core.utils.BoundsBounds of element.

Returns:

anychart.charts.Scatter - Self instance for method chaining.
Setter for the element bounds settings.

Params:

NameTypeDefaultDescription
xnumber | string
null
X-coordinate.
ynumber | string
null
Y-coordinate.
widthnumber | string
null
Width.
heightnumber | string
null
Height.

Returns:

anychart.charts.Scatter - Self instance for method chaining.

bubble

Adds Bubble series.

Params:

NameTypeDescription
dataanychart.data.View | anychart.data.Set | Array | stringData for the series.
csvSettingsObject.<string, (string|boolean)>If CSV string is passed, you can pass CSV parser settings here as a hash map.

Returns:

anychart.core.scatter.series.Bubble - An instance of the created series.

container

Getter for the element's container.
Setter for the element's container.

Params:

NameTypeDescription
valueanychart.graphics.vector.Layer | anychart.graphics.vector.Stage | string | ElementThe value to set.

Returns:

anychart.charts.Scatter - Self instance for method chaining.
Example
// string
 element.container('containerIdentifier');
// DOM-element
 var domElement = document.getElementById('containerIdentifier');
 element.container(domElement);
// Framework-element
 var fwElement = anychart.standalones.title();
 element.container( fwElement.container() );

contextMenu

Getter for the current context menu.

Returns:

anychart.ui.ContextMenu - The current context menu.
Setter for the context menu.

Params:

NameTypeDescription
valueObject | boolean | nullContext menu settings

Returns:

anychart.charts.Scatter - Self instance for method chaining.

credits

Getter for the current credits.

Returns:

anychart.core.ui.ChartCredits - Chart credits.
Setter for the chart credits. Learn more about credits settings.

Params:

NameTypeDefaultDescription
valueObject | boolean | null
true
Credits settings

Returns:

anychart.charts.Scatter - An instance of the class for method chaining.

crosshair

Getter for the current crosshair settings.

Returns:

anychart.core.ui.Crosshair - The current crosshair settings.
Setter for the crosshair settings.

Params:

NameTypeDefaultDescription
valueObject | boolean | null
false
Crosshair settings.

Returns:

anychart.charts.Scatter - Self instance for method chaining.

defaultSeriesType

Getter for the default scatter series type.

Returns:

string - Default series type.
Getter for the scatter default series type.

Params:

NameTypeDescription
valuestringDefault series type.

Returns:

anychart.charts.Scatter - Self instance for method chaining.

draw

Starts the rendering of the chart into the container.

Params:

NameTypeDescription
asyncbooleanWhether do draw asynchronously. If set to true, the chart will be drawn asynchronously

Returns:

anychart.charts.Scatter - Self instance for method chaining.

getPixelBounds

Returns pixel bounds of the element due to parent bounds and self bounds settings.

Returns:

anychart.math.Rect - Pixel bounds of the element.

getPlotBounds

Getter for the current data bounds of the chart. Note: Works only after anychart.charts.Scatter#draw is called.

Returns:

anychart.math.Rect - The current data bounds of the chart.

getSelectedPoints

Getter for the selected points.

Returns:

Array.<anychart.core.Point> - An array of the selected points.

getSeries

Getter series by its id.

Params:

NameTypeDescription
idnumber | stringId of the series.

Returns:

anychart.core.scatter.series.Base - An instance of the created series.

getSeriesAt

Gets series by its index.

Params:

NameTypeDescription
indexnumberIndex of the series.

Returns:

anychart.core.scatter.series.Base - An instance of the created series.

getSeriesCount

Returns series count.

Returns:

number - Number of series.

getStat

Getter for a statistical value by the key.

Params:

NameTypeDescription
keystring | anychart.enums.StatisticsKey.

Returns:

* - Statistics value.

getType

Returns chart type.

Returns:

string - Current chart type.

globalToLocal

Converts the global coordinates to local coordinates. Note: Works only after anychart.core.Chart#draw is called.

Params:

NameTypeDescription
xCoordnumberGlobal X coordinate.
yCoordnumberGlobal Y coordinate.

Returns:

Object.<string, number> - Object with XY coordinates.

grid

Getter for chart grid.

Params:

NameTypeDefaultDescription
indexnumber
0
Chart grid index. If not set - creates a new instance and adds it to the end of grid array.

Returns:

anychart.core.grids.Linear - Axis instance by index.
Setter for chart grid.

Params:

NameTypeDefaultDescription
valueObject | boolean | null
false
Chart grid settings to set.

Returns:

anychart.charts.Scatter - Self instance for method chaining.
Setter for chart grid by index.

Params:

NameTypeDefaultDescription
indexnumber
0
Chart grid index.
valueObject | boolean | null
Chart grid settings to set.

Returns:

anychart.charts.Scatter - Self instance for method chaining.

hatchFillPalette

Getter for hatch fill palette settings.

Returns:

anychart.palettes.HatchFills - Current markers palette.

Params:

NameTypeDescription
valueArray.<anychart.graphics.vector.HatchFill.HatchFillType> | Object | anychart.palettes.HatchFillsChart hatch fill palette settings to set.

Returns:

anychart.charts.Scatter - Self instance for method chaining.

height

Getter for element height setting.

Returns:

number | string | undefined - Current element's height setting.
Sets element height setting.

Params:

NameTypeDefaultDescription
valuenumber | string | null
null
Height setting for the element.

Returns:

anychart.charts.Scatter - Returns self for method chaining.

interactivity

Gets the current interactivity settings for chart.

Returns:

anychart.core.utils.Interactivity - The current interactivity settings.
Sets interactivity settings for chart.

Params:

NameTypeDescription
valueObject | anychart.enums.HoverModeSettings object or boolean value like enabled state.

Returns:

anychart.charts.Scatter - Self instance for method chaining.

label

Getter for chart label.

Params:

NameTypeDefaultDescription
indexstring | number
0
Index of instance.

Returns:

anychart.core.ui.Label - An instance of class.
Setter for chart label.

Params:

NameTypeDefaultDescription
valuenull | boolean | Object | string
false
Chart label instance to add by index 0.

Returns:

anychart.charts.Scatter - Self instance for method chaining.
Setter for chart label.

Params:

NameTypeDefaultDescription
indexstring | number
Label index.
valuenull | boolean | Object | string
false
Chart label settings.

Returns:

anychart.charts.Scatter - Self instance for method chaining.

left

Getter for element left bound setting.

Returns:

number | string | undefined - Current element's left bound setting.
Sets element left bound setting.

Params:

NameTypeDefaultDescription
valuenumber | string | null
null
Left bound setting for the element.

Returns:

anychart.charts.Scatter - Returns self for method chaining.

legend

Getter for the current chart legend.

Returns:

anychart.core.ui.Legend - An instance of the class for method chaining.
Setter for chart legend setting.

Params:

NameTypeDefaultDescription
valueObject | boolean | null
false
Legend settings.

Returns:

anychart.charts.Scatter - An instance of the class for method chaining.

line

Adds Line series.

Params:

NameTypeDescription
dataanychart.data.View | anychart.data.Set | Array | stringData for the series.
csvSettingsObject.<string, (string|boolean)>If CSV string is passed, you can pass CSV parser settings here as a hash map.

Returns:

anychart.core.scatter.series.Line - An instance of the created series.

lineMarker

Getter for chart line marker.

Params:

NameTypeDefaultDescription
indexnumber
0
Chart line marker index. If not set - creates a new instance and adds it to the end of array.

Returns:

anychart.core.axisMarkers.Line - Line marker instance by index.
Setter for chart line marker.

Params:

NameTypeDefaultDescription
valueObject | boolean | null
false
Chart line marker settings to set.

Returns:

anychart.charts.Scatter - Self instance for method chaining.
Setter for chart line marker by index.

Params:

NameTypeDefaultDescription
indexnumber
0
Chart line marker index.
valueObject | boolean | null
Chart line marker settings to set.

Returns:

anychart.charts.Scatter - Self instance for method chaining.

listen

Adds an event listener to an implementing object.

Params:

NameTypeDescription
typestringThe event type id.
listenerfunctionCallback method. Function that looks like function(event){ // event.actualTarget - actual event target // event.currentTarget - current event target // event.iterator - event iterator // event.originalEvent - original event // event.point - event point // event.pointIndex - event point index }.
useCapturebooleanWhether to fire in capture phase (defaults to false).
listenerScopeObjectObject in whose scope to call the listener.

Returns:

Object - Unique key for the listener.

listenOnce

Adds an event listener to an implementing object.

Params:

NameTypeDescription
typestringThe event type id.
listenerfunctionCallback method.
useCapturebooleanWhether to fire in capture phase (defaults to false).
listenerScopeObjectObject in whose scope to call the listener.

Returns:

Object - Unique key for the listener.

localToGlobal

Converts the local coordinates to global coordinates. Note: Works only after anychart.core.Chart#draw is called.

Params:

NameTypeDescription
xCoordnumberLocal X coordinate.
yCoordnumberLocal Y coordinate.

Returns:

Object.<string, number> - Object with XY coordinates.

margin

Setter for the chart margin in pixels using a single complex object.

Params:

NameTypeDefaultDescription
valueArray.<(number|string)> | Object
{top: 0, right: 0, bottom: 0, left: 0}
Value to set.

Returns:

anychart.charts.Scatter - Self instance for method chaining.
Example.
// all margins 15px
chart.margin(15);
// all margins 15px
chart.margin("15px");
// top and bottom 5px, right and left 15px
chart.margin(anychart.utils.margin(5, 15));
Setter for the chart margin in pixels using several simple values.

Params:

NameTypeDefaultDescription
value1string | number
0
Top or top-bottom space.
value2string | number
0
Right or right-left space.
value3string | number
0
Bottom space.
value4string | number
0
Left space.

Returns:

anychart.charts.Scatter - Self instance for method chaining.
Example.
// 1) all 10px
chart.margin(10);
// 2) top and bottom 10px, left and right 15px
chart.margin(10, "15px");
// 3) top 10px, left and right 15px, bottom 5px
chart.margin(10, "15px", 5);
// 4) top 10px, right 15px, bottom 5px, left 12px
chart.margin(10, "15px", "5px", 12);

marker

Adds Marker series.

Params:

NameTypeDescription
dataanychart.data.View | anychart.data.Set | Array | stringData for the series.
csvSettingsObject.<string, (string|boolean)>If CSV string is passed, you can pass CSV parser settings here as a hash map.

Returns:

anychart.core.scatter.series.Marker - An instance of the created series.

markerPalette

Getter for markers palette settings.

Returns:

anychart.palettes.Markers - Current markers palette.
Setter for markers palette settings.

Params:

NameTypeDescription
valueanychart.palettes.Markers | Object | Array.<anychart.enums.MarkerType>Value to set.

Returns:

anychart.charts.Scatter - Self instance for method chaining.

maxBubbleSize

Getter for the current maximum size for all bubbles on the charts.

Returns:

number | string - The current maximum size of the all bubbles.
Setter for the maximum size for all bubbles on the charts.

Params:

NameTypeDefaultDescription
valuenumber | string
"20%"
Maximum size to set.

Returns:

anychart.charts.Scatter - Self instance for method chaining.

maxHeight

Getter for maximum height.

Returns:

number | string | null - Current element's maximum height.
Setter for maximum height.

Params:

NameTypeDefaultDescription
valuenumber | string | null
null
Value to set.

Returns:

anychart.charts.Scatter - Self instance for method chaining.

maxWidth

Getter for maximum width.

Returns:

number | string | null - Current element's maximum width.
Setter for maximum width.

Params:

NameTypeDefaultDescription
valuenumber | string | null
null
Value to set.

Returns:

anychart.charts.Scatter - Self instance for method chaining.

minBubbleSize

Getter for the current minimum size for all bubbles on the charts.

Returns:

number | string - The current minimum size of the all bubbles.
Setter for the minimum size for all bubbles on the charts.

Params:

NameTypeDefaultDescription
valuenumber | string
"5%"
Minimum size to set.

Returns:

anychart.charts.Scatter - Self instance for method chaining.

minHeight

Getter for minimum height.

Returns:

number | string | null - Current element's minimum height.
Setter for minimum height.

Params:

NameTypeDefaultDescription
valuenumber | string | null
null
Value to set.

Returns:

anychart.charts.Scatter - Self instance for method chaining.

minWidth

Getter for minimum width.

Returns:

number | string | null - Current element's minimum width.
Setter for minimum width.

Params:

NameTypeDefaultDescription
valuenumber | string | null
null
Value to set.

Returns:

anychart.charts.Scatter - Self instance for method chaining.

minorGrid

Getter for chart minor grid.

Params:

NameTypeDefaultDescription
indexnumber
0
Chart minor grid index. If not set - creates a new instance and adds it to the end of array.

Returns:

anychart.core.grids.Linear - Axis instance by index.
Setter for chart minor grid.

Params:

NameTypeDefaultDescription
valueObject | boolean | null
false
Chart minor grid settings to set.

Returns:

anychart.charts.Scatter - Self instance for method chaining.
Setter for chart minor grid by index.

Params:

NameTypeDefaultDescription
indexnumber
0
Chart minor grid index.
valueObject | boolean | null
Chart minor grid settings to set.

Returns:

anychart.charts.Scatter - Self instance for method chaining.

padding

Setter for the chart paddings in pixels using a single value.

Params:

NameTypeDefaultDescription
valueArray.<(number|string)> | Object
{top: 0, right: 0, bottom: 0, left: 0}
Value to set.

Returns:

anychart.charts.Scatter - Self instance for method chaining.
Example.
chart.padding([5, 15]);
or
chart.padding({left: 10, top: 20, bottom: 30, right: "40%"}});
Setter for the chart paddings in pixels using several numbers.

Params:

NameTypeDefaultDescription
value1string | number
0
Top or top-bottom space.
value2string | number
0
Right or right-left space.
value3string | number
0
Bottom space.
value4string | number
0
Left space.

Returns:

anychart.charts.Scatter - Self instance for method chaining.
Example.
// 1) all 10px
chart.padding(10);
// 2) top and bottom 10px, left and right 15px
chart.padding(10, "15px");
// 3) top 10px, left and right 15px, bottom 5px
chart.padding(10, "15px", 5);
// 4) top 10px, right 15%, bottom 5px, left 12px
chart.padding(10, "15%", "5px", 12);

palette

Getter for the current series colors palette.
Setter for the series colors palette. Note: You can use predefined palettes from anychart.palettes.

Params:

NameTypeDescription
valueanychart.palettes.RangeColors | anychart.palettes.DistinctColors | Object | Array.<string>Value to set.

Returns:

anychart.charts.Scatter - Self instance for method chaining.

print

Prints all elements on related stage.

Params:

NameTypeDefaultDescription
paperSizeOrOptionsanychart.graphics.vector.PaperSize | Object
Paper size or object with options.
landscapeboolean
false
Flag of landscape.

rangeMarker

Getter for chart range marker.

Params:

NameTypeDefaultDescription
indexnumber
0
Chart range marker index. If not set - creates a new instance and adds it to the end of array.

Returns:

anychart.core.axisMarkers.Range - Range marker instance by index.
Setter for chart range marker.

Params:

NameTypeDefaultDescription
valueObject | boolean | null
false
Chart range marker settings to set.

Returns:

anychart.charts.Scatter - Self instance for method chaining.
Setter for chart range marker by index.

Params:

NameTypeDefaultDescription
indexnumber
0
Chart range marker index.
valueObject | boolean | null
Chart range marker settings to set.

Returns:

anychart.charts.Scatter - Self instance for method chaining.

removeAllListeners

Removes all listeners from an object. You can also optionally remove listeners of some particular type.

Params:

NameTypeDescription
typestringType of event to remove, default is to remove all types.

Returns:

number - Number of listeners removed.

removeAllSeries

Removes all series from chart.

Returns:

anychart.charts.Scatter - Self instance for method chaining.

removeSeries

Removes one of series from chart by its id.

Params:

NameTypeDescription
idnumber | stringSeries id.

Returns:

anychart.charts.Scatter - Self instance for method chaining.

removeSeriesAt

Removes one of series from chart by its index.

Params:

NameTypeDescription
indexnumberSeries index.

Returns:

anychart.charts.Scatter - Self instance for method chaining.
Getter for element right bound setting.

Returns:

number | string | undefined - Current element's right bound setting.
Sets element right bound setting.

Params:

NameTypeDefaultDescription
valuenumber | string | null
null
Right bound setting for the element.

Returns:

anychart.charts.Scatter - Returns self for method chaining.

saveAsCsv

Saves chart data as CSV file.

Params:

NameTypeDescription
chartDataExportModestring | anychart.enums.ChartDataExportModeData export mode.
csvSettingsObject.<string, (string|boolean|undefined)>CSV settings.
filenamestringFile name to save.

saveAsJpg

Saves the current chart as JPEG image.

Params:

NameTypeDescription
widthnumber | ObjectImage width or object with options.
heightnumberImage height.
qualitynumberImage quality in ratio 0-1.
forceTransparentWhitebooleanForce transparent to white or not.
filenamestringFile name to save.

saveAsJson

Saves chart config as JSON document.

Params:

NameTypeDescription
includeThemebooleanIf the current theme properties should be included into the result.
filenamestringFile name to save.

saveAsPdf

Saves the current chart as PDF image.

Params:

NameTypeDescription
paperSizeOrWidthOrOptionsnumber | string | ObjectAny paper format like 'a0', 'tabloid', 'b4', etc or width, or object with options.
landscapebooleanDefine, is landscape.
xnumberOffset X.
ynumberOffset Y.
filenamestringFile name to save.

saveAsPng

Saves the current chart as PNG image.

Params:

NameTypeDescription
widthnumber | ObjectImage width or object with options.
heightnumberImage height.
qualitynumberImage quality in ratio 0-1.
filenamestringFile name to save.

saveAsSvg

Saves the current chart as SVG image.

Params:

NameTypeDescription
paperSizestring | ObjectPaper Size or object with options.
landscapebooleanLandscape.
filenamestringFile name to save.
Saves the stage as SVG image using width and height.

Params:

NameTypeDescription
widthnumberImage width.
heightnumberImage height.

saveAsXlsx

Saves chart data as Excel document.

Params:

NameTypeDescription
chartDataExportModestring | anychart.enums.ChartDataExportModeData export mode.
filenamestringFile name to save.

saveAsXml

Saves chart config as XML document.

Params:

NameTypeDescription
includeThemebooleanIf the current theme properties should be included into the result.
filenamestringFile name to save.

textMarker

Getter for chart text marker.

Params:

NameTypeDefaultDescription
indexnumber
0
Chart text marker index. If not set - creates a new instance and adds it to the end of array.

Returns:

anychart.core.axisMarkers.Text - Text marker instance by index.
Setter for chart text marker.

Params:

NameTypeDefaultDescription
valueObject | boolean | null
false
Chart text marker settings to set.

Returns:

anychart.charts.Scatter - Self instance for method chaining.
Setter for chart text marker by index.

Params:

NameTypeDefaultDescription
indexnumber
0
Chart text marker index.
valueObject | boolean | null
Chart text marker settings to set.

Returns:

anychart.charts.Scatter - Self instance for method chaining.

title

Getter for chart title.

Returns:

anychart.core.ui.Title - The current chart title.
Setter for the chart title.

Params:

NameTypeDefaultDescription
valuenull | boolean | Object | string
false
Chart title text or title instance for copy settings from.

Returns:

anychart.charts.Scatter - Self instance for method chaining.

toCsv

Returns CSV string with series data.

Params:

NameTypeDescription
chartDataExportModestring | anychart.enums.ChartDataExportModeData export mode.
csvSettingsObject.<string, (string|boolean|undefined)>CSV settings.

Returns:

string - CSV string.

toJson

Return chart configuration as JSON object or string.

Params:

NameTypeDefaultDescription
stringifyboolean
false
Returns JSON as string.
includeThemeboolean
false
If the current theme properties should be included into the result.

Returns:

Object | string - Chart configuration.

toSvg

Returns SVG string with paper size and landscape.

Params:

NameTypeDescription
paperSizestring | ObjectPaper Size or object of options.
landscapebooleanLandscape.

Returns:

string - SVG content or empty string.
Returns SVG string with with determined the width and height.

Params:

NameTypeDescription
widthnumberImage width.
heightnumberImage height.

Returns:

string - SVG content or empty string.

toXml

Return chart configuration as XML string or XMLNode.

Params:

NameTypeDefaultDescription
asXmlNodeboolean
false
Return XML as XMLNode.
includeThemeboolean
false
If the current theme properties should be included into the result.

Returns:

string | Node - Chart configuration.

tooltip

Getter for current chart tooltip.

Returns:

anychart.core.ui.Tooltip - An instance of the class for method chaining.
Example
var tooltipSettings = chart.tooltip();
Setter for chart tooltip.

Params:

NameTypeDescription
valueObject | boolean | null

Returns:

anychart.charts.Scatter - Self instance for method chaining.

top

Getter for element top bound setting.

Returns:

number | string | undefined - Current element's top bound setting.
Sets element top bound setting.

Params:

NameTypeDefaultDescription
valuenumber | string | null
null
Top bound setting for the element.

Returns:

anychart.charts.Scatter - Returns self for method chaining.

unlisten

Removes a listener added using listen() or listenOnce() methods.

Params:

NameTypeDescription
typestringThe event type id.
listenerfunctionCallback method.
useCapturebooleanWhether to fire in capture phase (defaults to false).
listenerScopeObjectObject in whose scope to call the listener.

Returns:

boolean - Whether any listener was removed.

unlistenByKey

Removes an event listener which was added with listen() by the key returned by listen() or listenOnce().

Params:

NameTypeDescription
keyObjectThe key returned by listen() or listenOnce().

Returns:

boolean - Whether any listener was removed.

width

Getter for element width setting.

Returns:

number | string | undefined - Current element's width setting.
Sets element width setting.

Params:

NameTypeDefaultDescription
valuenumber | string | null
null
Width setting for the element.

Returns:

anychart.charts.Scatter - Returns self for method chaining.

xAxis

Getter for chart X-axis.

Params:

NameTypeDefaultDescription
indexnumber
0
Chart axis index. If not set - creates a new instance and adds it to the end of array.

Returns:

anychart.core.axes.Linear - Axis instance by index.
Setter for chart X-axis.

Params:

NameTypeDefaultDescription
valueObject | boolean | null
true
Chart axis settings to set.

Returns:

anychart.charts.Scatter - Self instance for method chaining.
Setter for chart X-axis by index.

Params:

NameTypeDefaultDescription
indexnumber
0
Chart axis index.
valueObject | boolean | null
Chart axis settings to set.

Returns:

anychart.charts.Scatter - Self instance for method chaining.

xScale

Getter for default chart X scale.

Returns:

anychart.scales.ScatterBase - Default chart scale value.
Setter for default chart X scale.

Params:

NameTypeDefaultDescription
valueanychart.enums.ScatterScaleTypes | anychart.scales.ScatterBase
"linear"
X Scale to set.

Returns:

anychart.charts.Scatter - Self instance for method chaining.

yAxis

Getter for chart Y-axis.

Params:

NameTypeDefaultDescription
indexnumber
0
Chart axis index. If not set - creates a new instance and adds it to the end of array.

Returns:

anychart.core.axes.Linear - Axis instance by index.
Setter for chart Y-axis.

Params:

NameTypeDefaultDescription
valueObject | boolean | null
true
Chart axis settings to set.

Returns:

anychart.charts.Scatter - Self instance for method chaining.
Setter for chart Y-axis by index.

Params:

NameTypeDefaultDescription
indexnumber
0
Chart axis index.
valueObject | boolean | null
Chart axis settings to set.

Returns:

anychart.charts.Scatter - Self instance for method chaining.

yScale

Getter for default chart Y scale.

Returns:

anychart.scales.ScatterBase - Default chart scale value.
Setter for default chart Y scale.

Params:

NameTypeDefaultDescription
valueanychart.enums.ScatterScaleTypes | anychart.scales.ScatterBase
"linear"
Y Scale to set.

Returns:

anychart.charts.Scatter - Self instance for method chaining.

zIndex

Getter for the current Z-index of the element.

Returns:

number - The current zIndex.
Setter for the Z-index of the element.

Params:

NameTypeDefaultDescription
valuenumber
0
Value to set.

Returns:

anychart.charts.Scatter - Self instance for method chaining.
